Buick
>>
1997
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
MAF, EVAP and EGR
MAF, EVAP and EGR

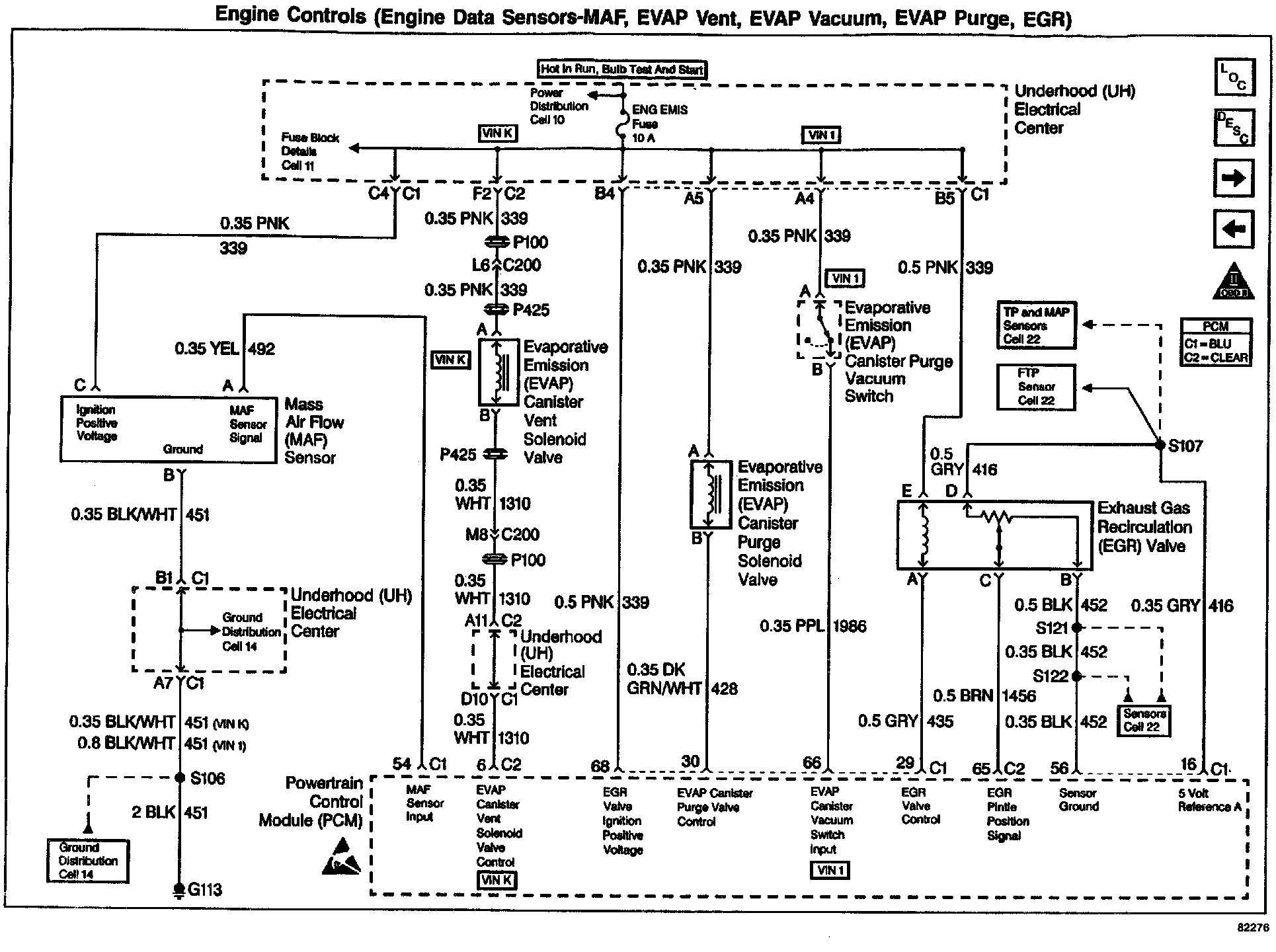

Wiring Diagram:
