Home >> Buick >> 1997 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID >> Underhood Electrical Center

Underhood Electrical Center

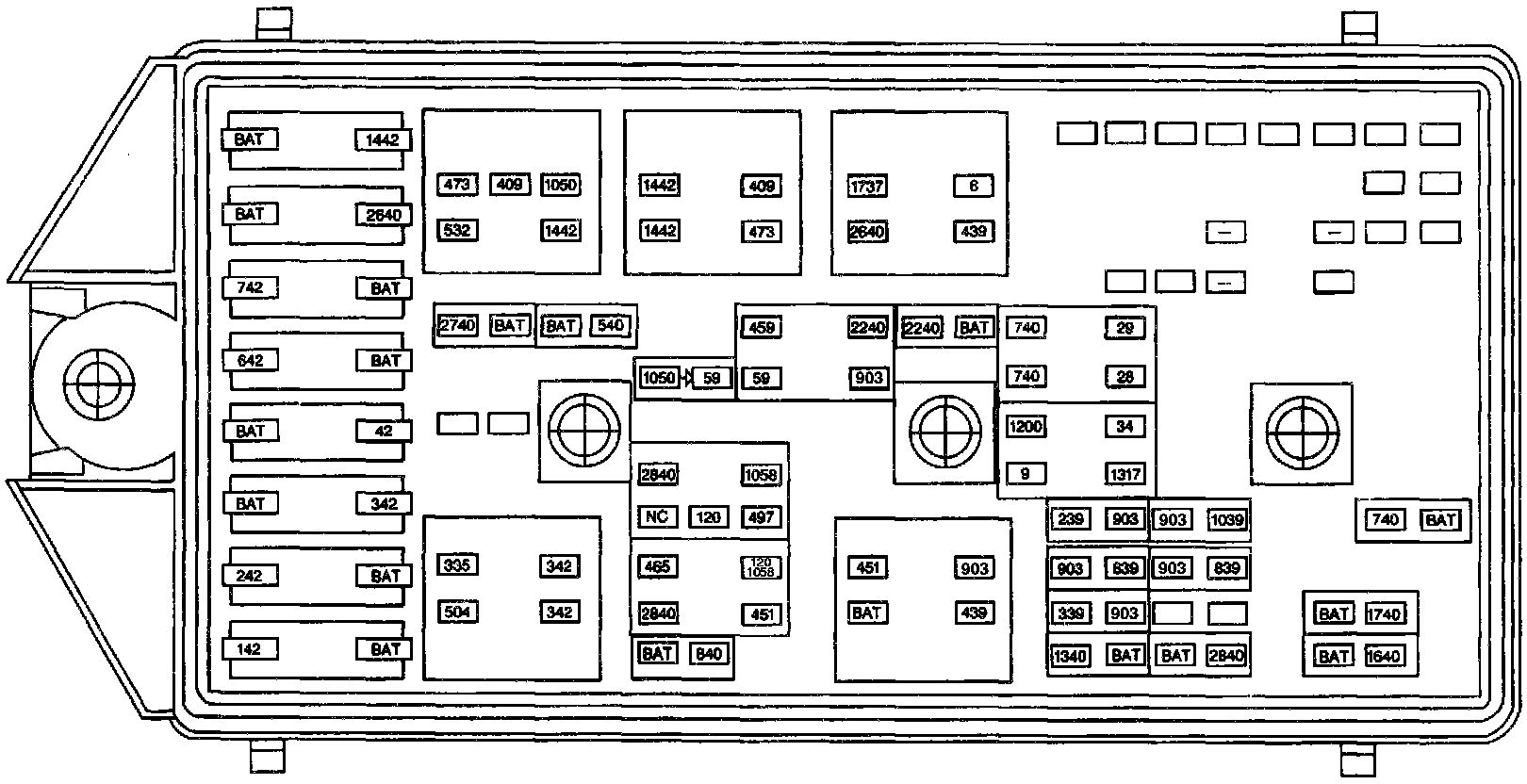

Underhood Electrical Center:

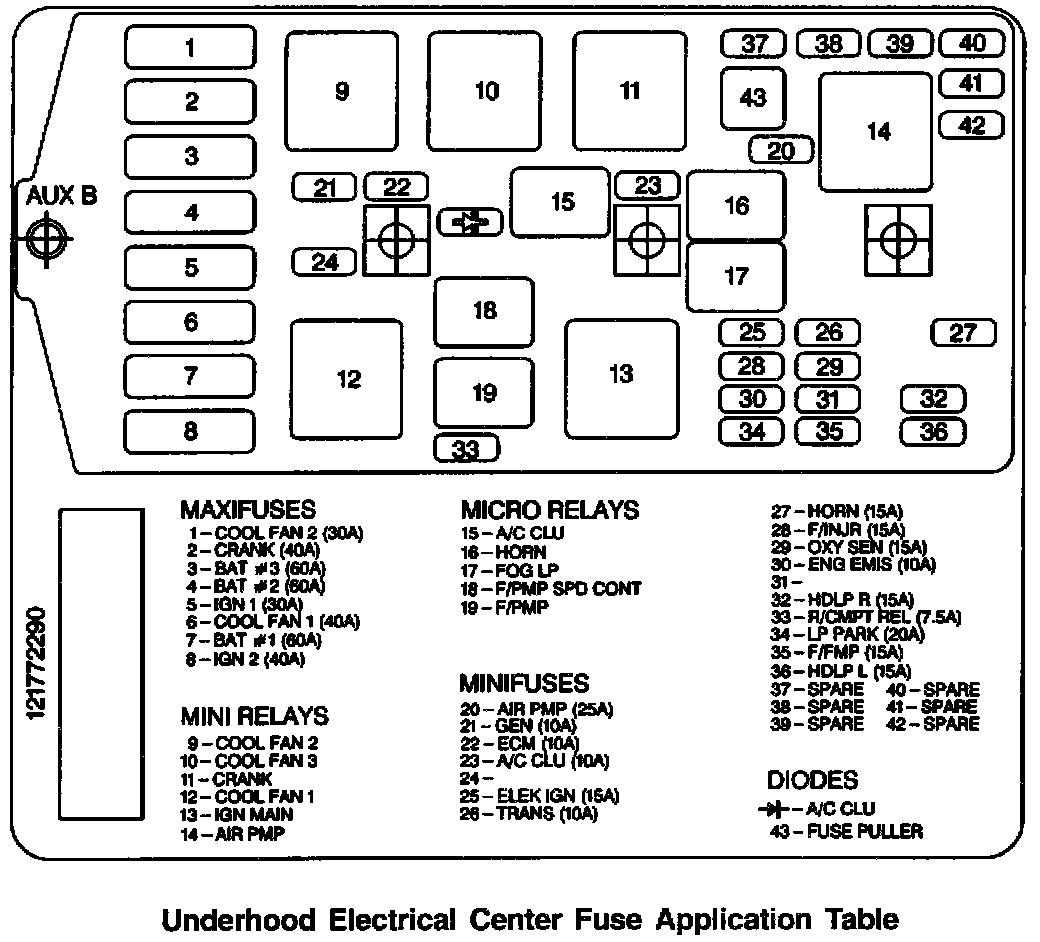

Underhood Electrical Center Fuse Application Table:
