Left Side

REMOVAL
1. Raise vehicle and suitably support.

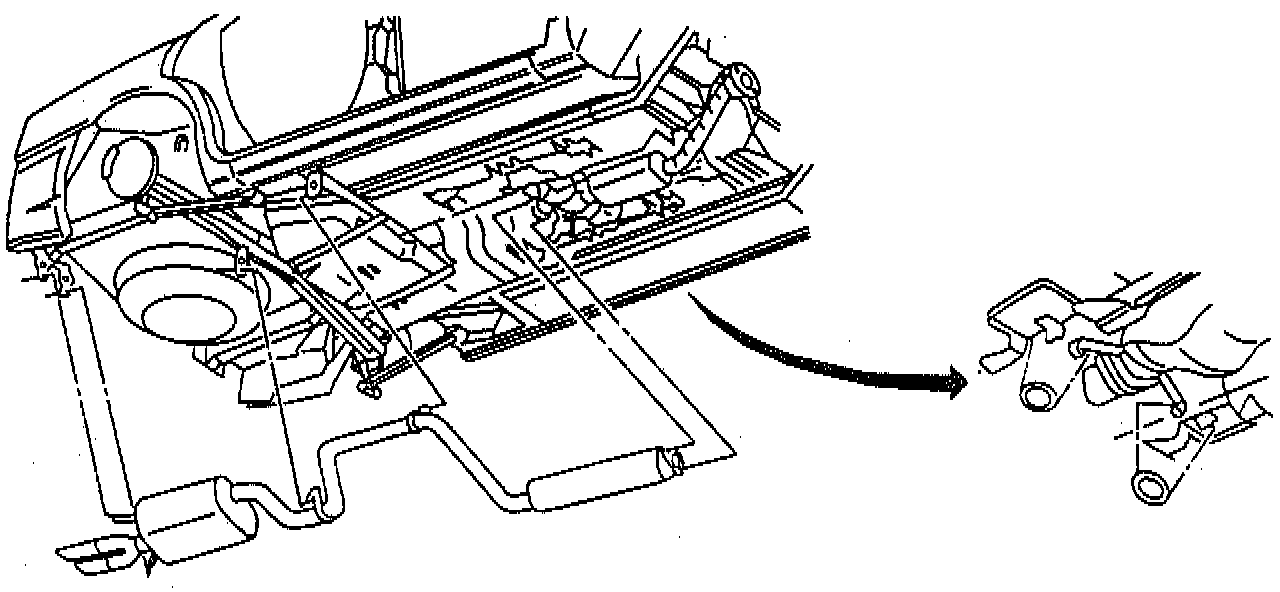

2. Support exhaust pipe and left hand muffler.

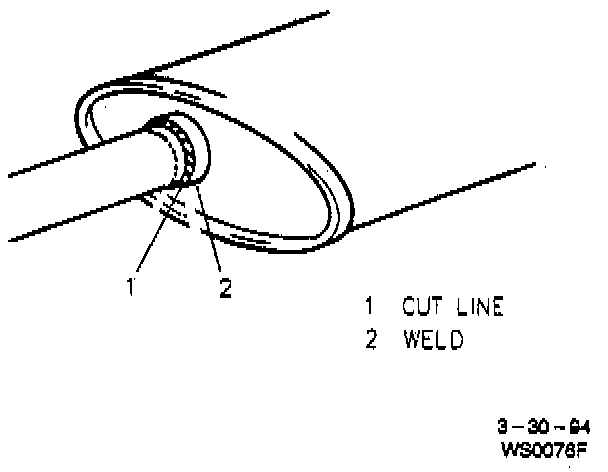

3. Cut exhaust pipe at left hand muffler in front of weld. Cut must be made as close to the left hand muffler as possible to ensure adequate overlap for clamping.
4. Hangers from muffler.





5. Tailpipe from muffler (if equipped).
6. Muffler.

INSTALLATION

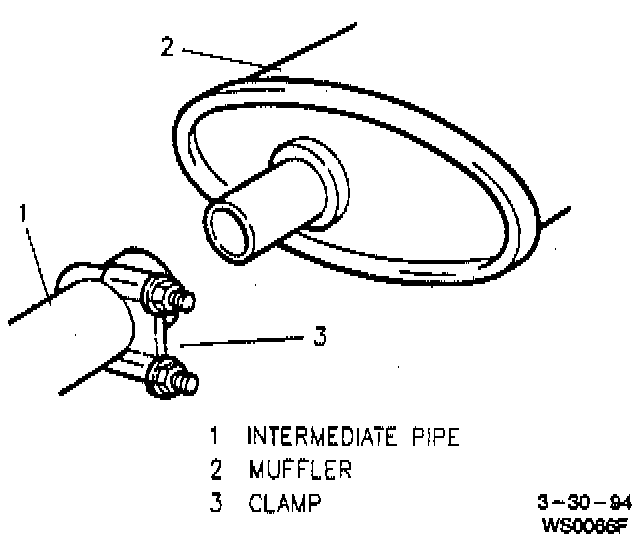

1. Exhaust pipe clamp to end of new left hand muffler. Do not tighten.





2. New left hand muffler.
3. Hangers to muffler.
4. Tailpipe to muffler (if equipped). Tighten
^ Exhaust pipe clamp nuts to 50 Nm (37 ft. lbs.).
^ Tailpipe clamp nuts to 35 Nm (27 ft. lbs.).
5. Lower vehicle.
