Strut Bracket Replacement (Left Side)
REMOVAL1. Drain the coolant. See Cooling System.
2. Remove the engine coolant temperature sensor.
3. Remove the radiator support clamp from the engine mount strut bolt.
4. Remove the engine mount strut at the engine side.

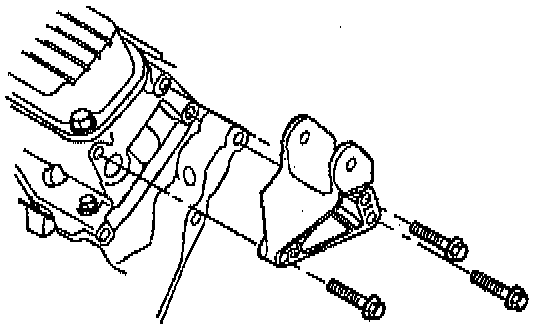

5. Remove the engine mount strut bracket bolts.
6. Remove the engine mount strut bracket.
INSTALLATION
1. Install the engine mount strut bracket to the head.
2. Install the engine mount strut bracket bolts. Tighten the engine mount strut bracket bolts to 50 Nm (37 ft. lbs.).
3. Install the engine mount strut to the engine mount strut bracket.
4. Install the radiator support clamp to the engine mount strut bolt.
5. Install the engine coolant temperature sensor. Tighten the sensor to 25 Nm (18 ft. lbs.).
6. Refill the engine coolant. See Cooling System.
