Home
>>
Buick
>>
1997
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
System Diagram
>>
C1 (Ajar Indicator Switch)
>>
RR
RR

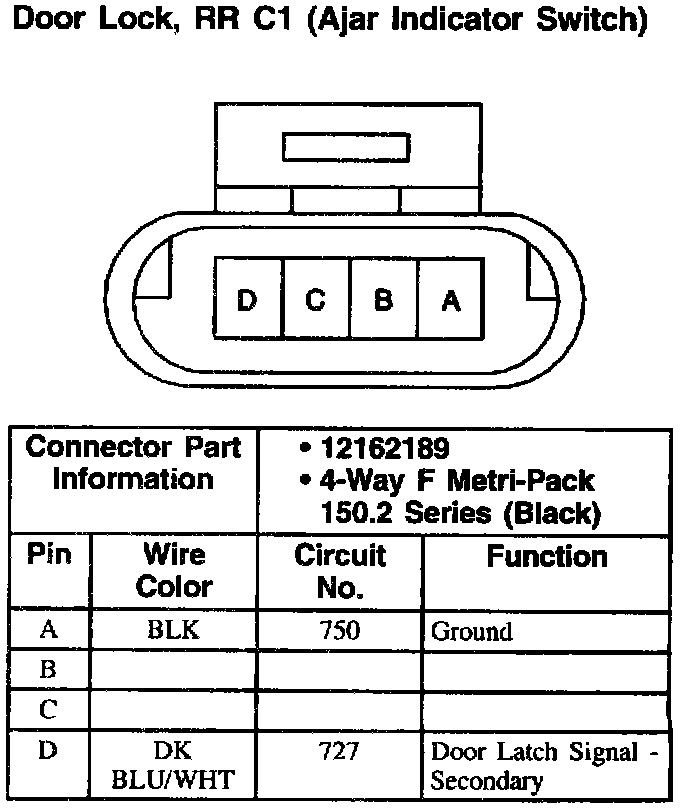

Door Lock, RR: C1 (Ajar Indicator Switch):
