Home
>>
Buick
>>
1997
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>
With Enhanced Traction System (ETS)
>>

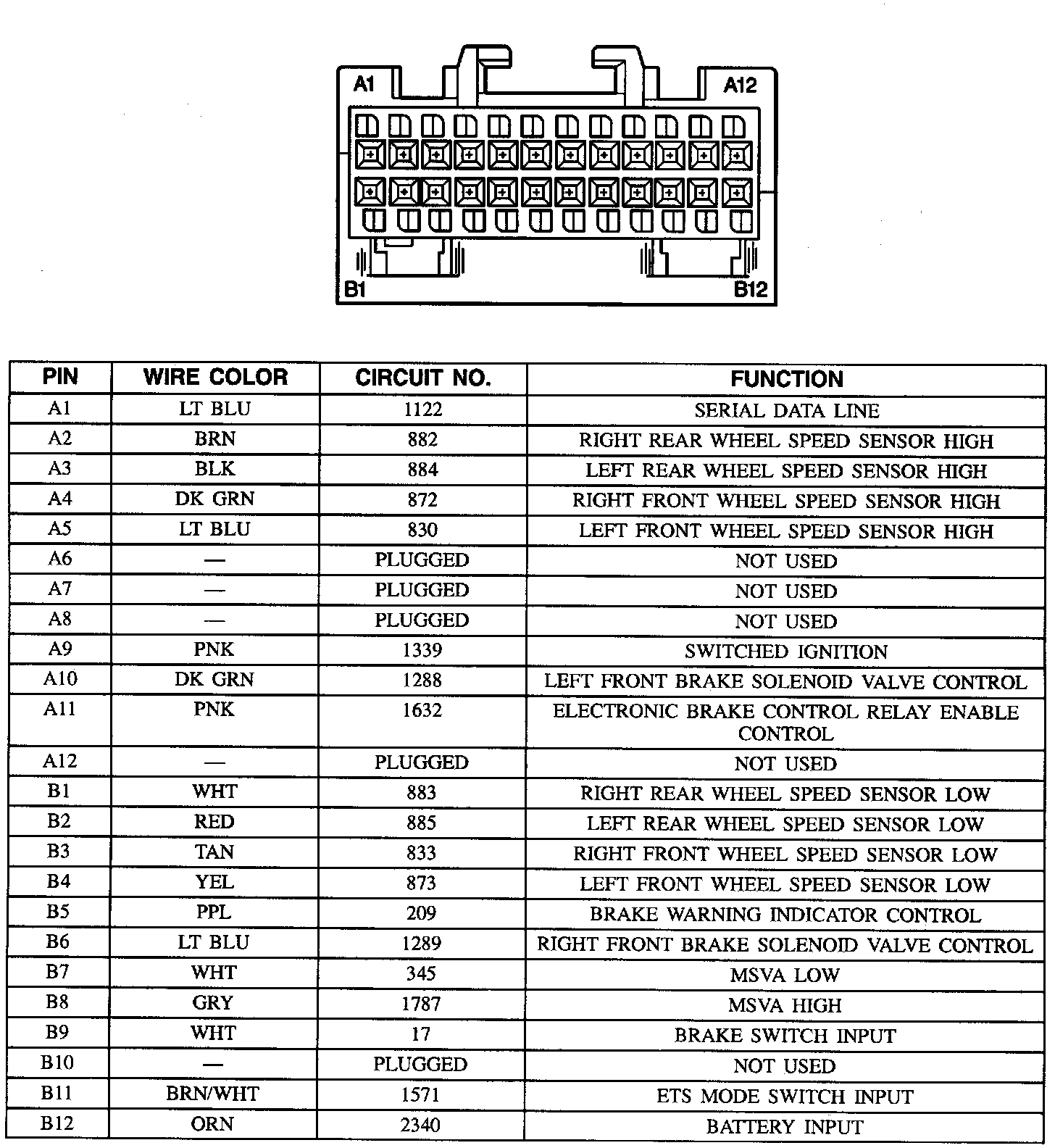

EBCM 24-Way Connector
EBCM 24-Way Connector
24-Way Connector:
