Adjusting Screw Replacement

Adjusting Screw:

REMOVE OR DISCONNECT
1. Brake drum.
2. Actuator spring.
3. Retractor spring at adjuster shoe using J 38400.
4. Adjuster shoe, actuator and adjuster screw. Adjust shoe to drum clearance using J 21177-A.

INSTALL OR CONNECT

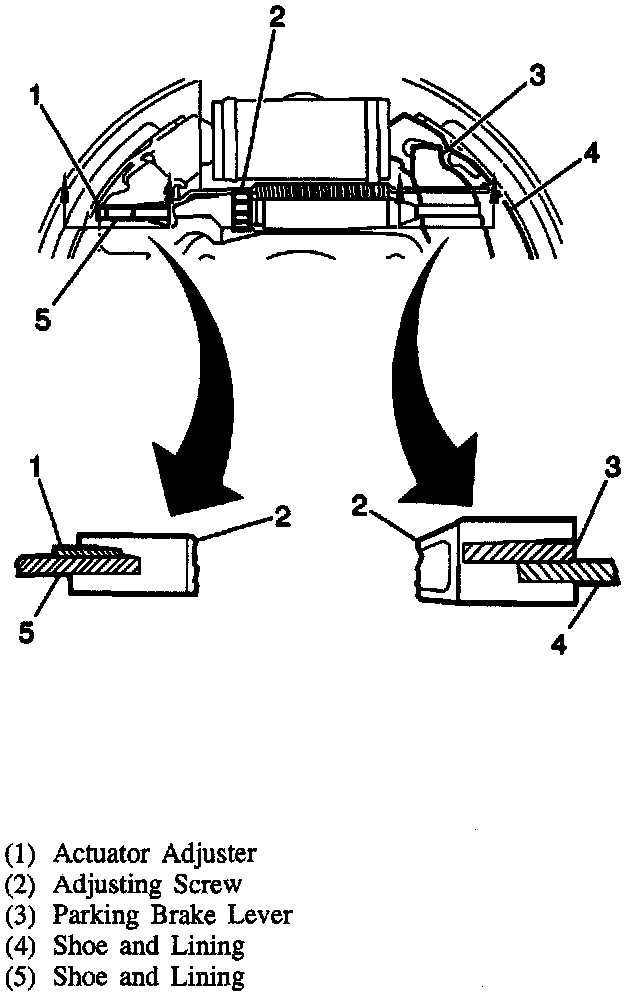

Adjusting Screw Position:

1. Adjuster shoe, actuator and adjuster screw.
2. Retractor spring at adjuster shoe using J 38400.
3. Actuator spring.
4. Brake drum.
