Hood Latch Release: Service and Repair

Description:

Remove or Disconnect

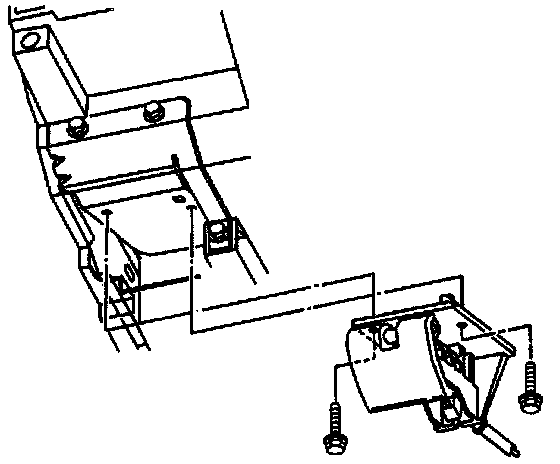

1. Bolts from hood release handle base.

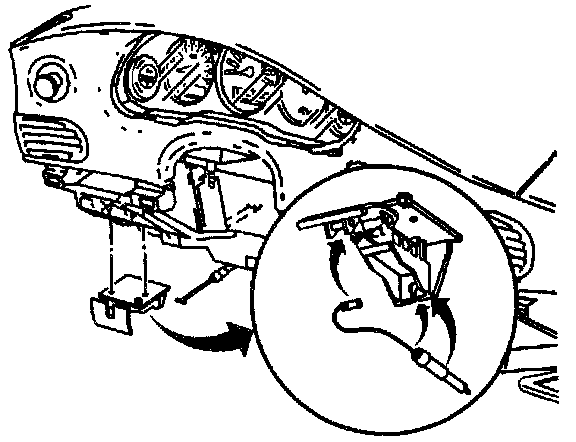

2. Hood release cable from hood release handle.
3. Hood release handle from instrument panel.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Hood release cable to hood release handle.
2. Hood release handle to I/P.
3. Bolts/screws to hood release handle base.

Tighten
^ Bolts/screws to 2 N.m (18 lb.in.).
