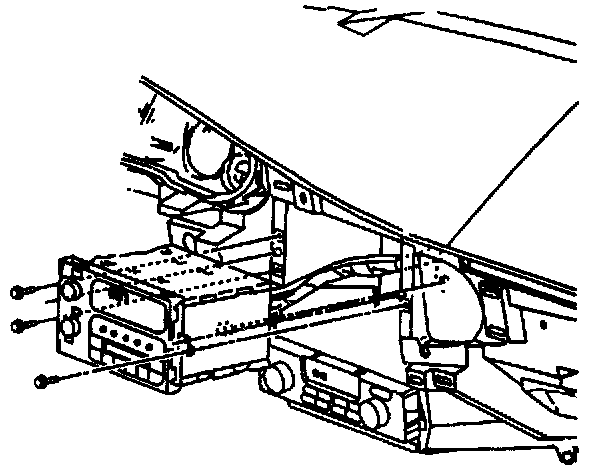

Audio System Replacement

Description:

Remove or Disconnect
1. Instrument panel cluster trim plate.
2. Instrument panel accessory trim plate (Buick without console).
3. Screws from audio system.
4. Electrical connectors.
5. Audio system from instrument panel.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Electrical connectors.
2. Audio system to instrument panel.
3. Screws to audio system.

Tighten
^ Screws to 2 N.m (18 lb.in.).

4. Instrument panel cluster trim plate.
5. Instrument panel accessory trim plate (Buick without console).
