Front Wiper Motor

Description:

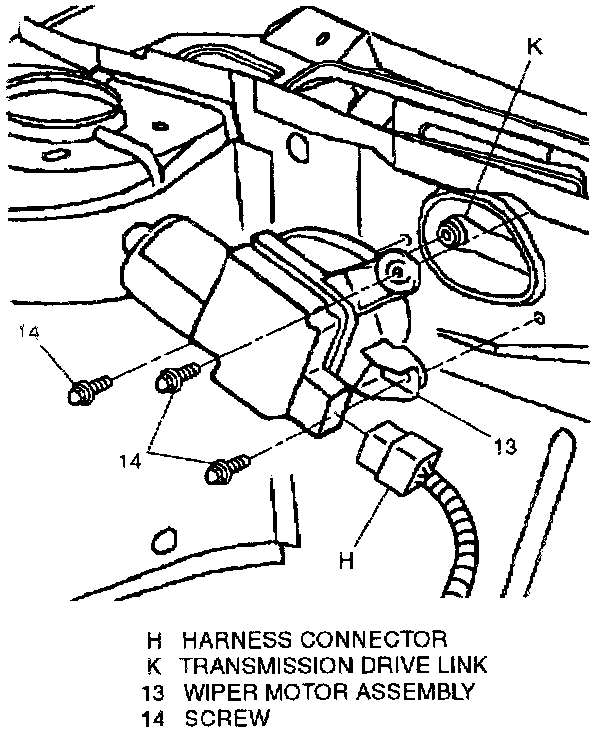

Remove or Disconnect
Tool Required:
J 39232 Wiper Transmission Separator
1. Wiper arm and blade assemblies.
2. Air inlet screen from vehicle.

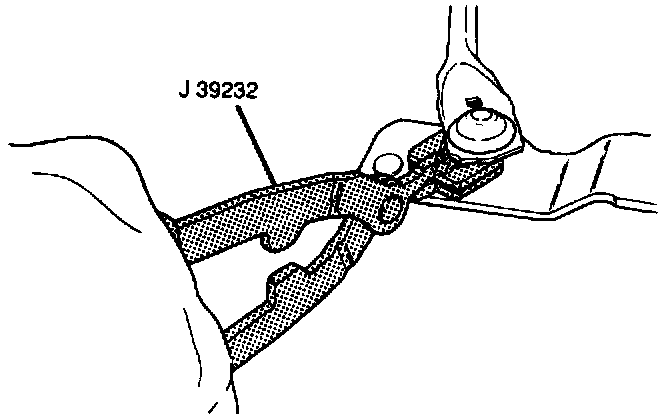

3. Transmission drive link (K) socket from wiper motor assembly crank arm using J 39232.
4. Electrical connector (H) from wiper motor assembly (13).
5. Three screws (14) and wiper motor assembly (13) from vehicle.

Install or Connect
Tool Required:
J 39529 Wiper Transmission Installer

NOTICE: See Fastener Notice.

1. Wiper motor assembly (13) on vehicle with three screws (14).

Tighten
- Screws to 8 N.m (70 lb. in.).
2. Electrical connector (H) to wiper motor assembly (13).

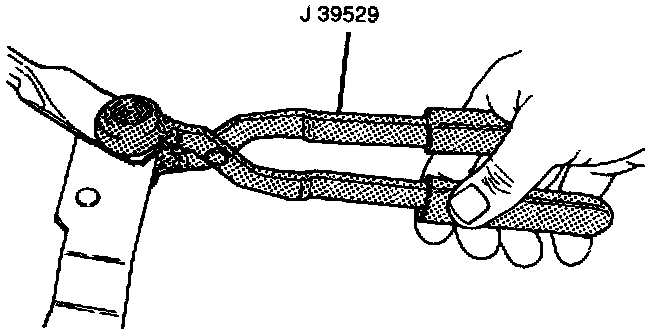

3. Transmission drive link (K) socket to wiper motor assembly (13) crank arm ball using J 39529. Be sure socket is fully seated on ball.
4. Air inlet screen on vehicle.
5. Wiper arm and blade assemblies.
