Line/Hose Replacement

REMOVAL

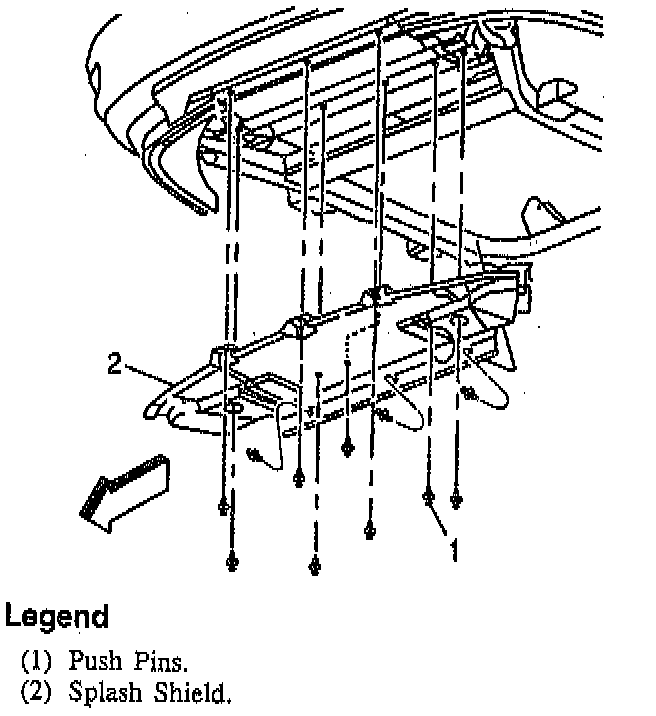

1. Splash shield.

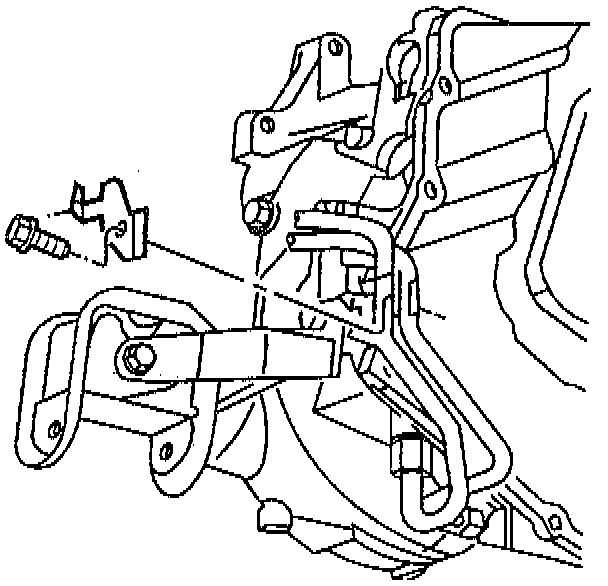

2. Oil cooler line retainers on radiator support.

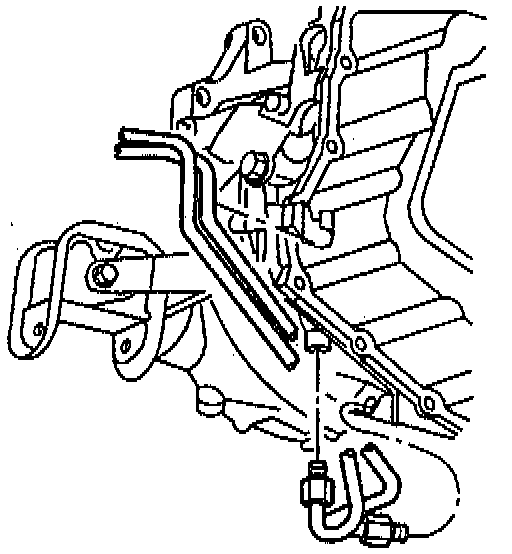

3. Oil cooler lines from radiator.





4. Oil cooler line retainer from transaxle.





5. Oil cooler lines from transaxle.

INSTALLATION
1. Oil cooler lines to transaxle. Tighten fitting to 20 Nm (15 ft. lbs.).
2. Oil cooler line retainer to transaxle. Tighten bolt to 7 Nm (62 inch lbs.).
3. Oil cooler lines to radiator. Tighten to 27 Nm (20 ft. lbs.).
4. Oil cooler line retainers to radiator support. Tighten to 10 Nm (89 inch lbs.).
5. Splash shield.
6. Start vehicle and check for leaks.
7. Check transaxle oil level.
