Battery

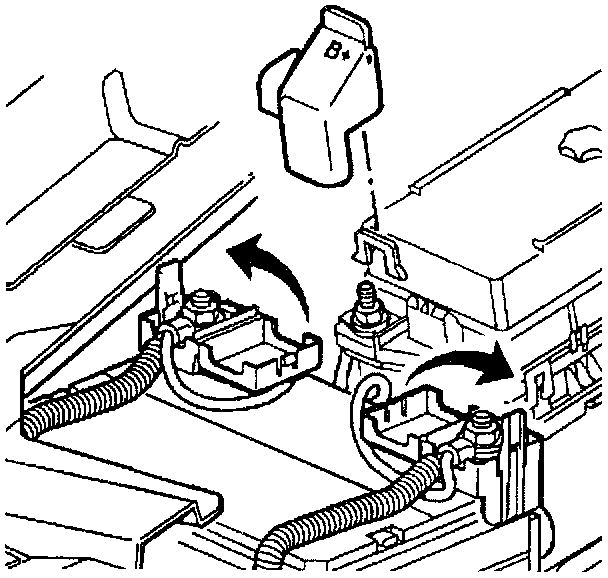

Transition Block Battery Cable Protectors:

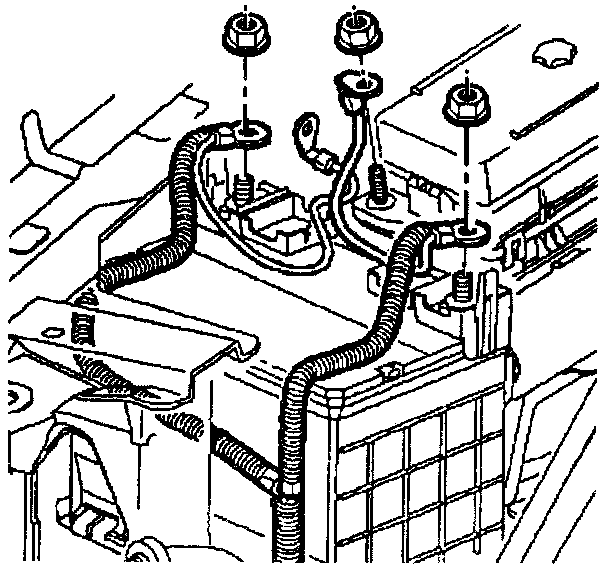

Transition Block Battery Cable Retainers:

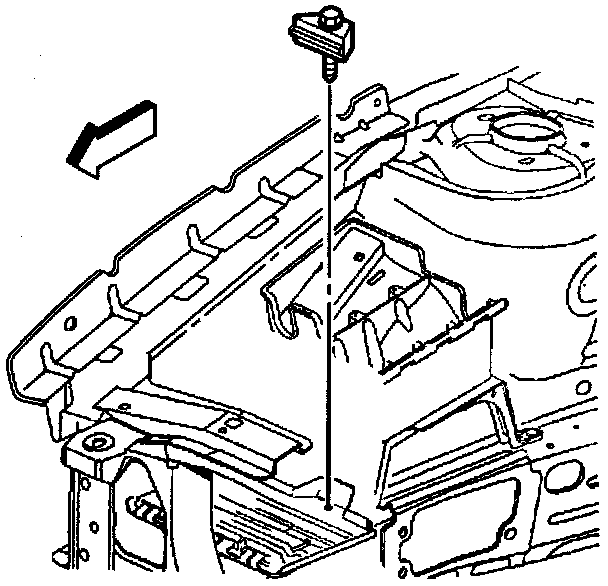

Battery Retainer:

Battery Placement:

NOTE: Always turn the ignition "OFF" when connecting or disconnecting battery cables, battery chargers or jumper cables. Failure to do so may damage the Powertrain Control Module (PCM) or other electrical components.

REMOVE OR DISCONNECT
1. Negative battery cable from transition block.
2. Positive battery cable from transition block.
3. Bolt and retainer.
4. Battery
5. Negative transition block cable from side of battery.
6. Positive transition block cable from side of battery.

INSTALL OR CONNECT
1. Transition block cable to battery.
Tighten: Battery cable to 14 N.m (11 lb. ft.).
2. Transition block cable to battery.
Tighten: Battery cable to 14 N.m (11 lb. ft.).
3. Retainer and retainer bolt.
Tighten: Bolt to 17 N.m (13 lb. ft.).
4. Battery.
5. Positive cable to transition block.
Tighten: Battery cable to 14 N.m (11 lb. ft.).
6. Negative cable to transition block.
Tighten: Battery cable to 14 N.m (11 lb. ft.).
