Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

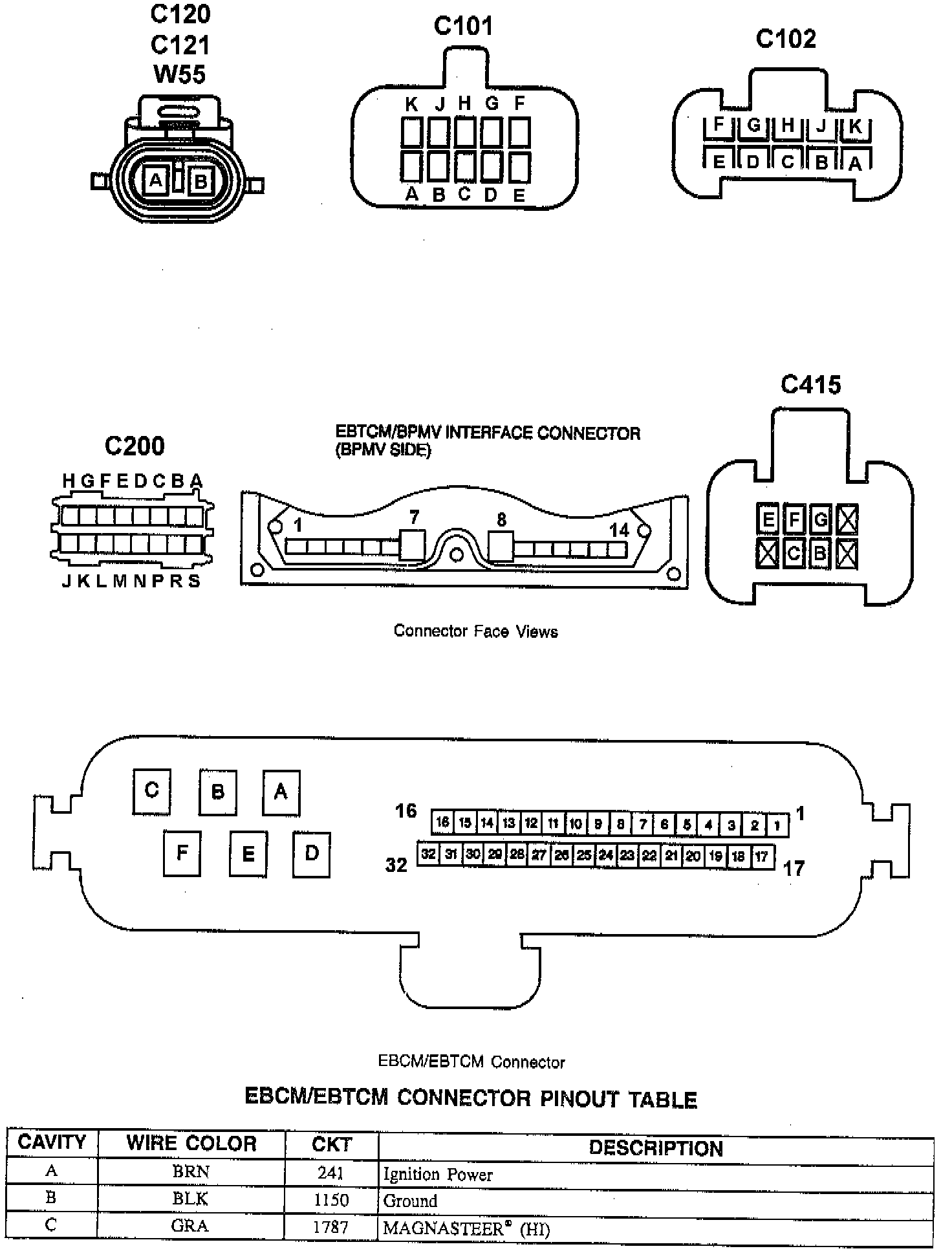

EBCM/EBTCM Connector Pinout Table (Part 1 Of 2):

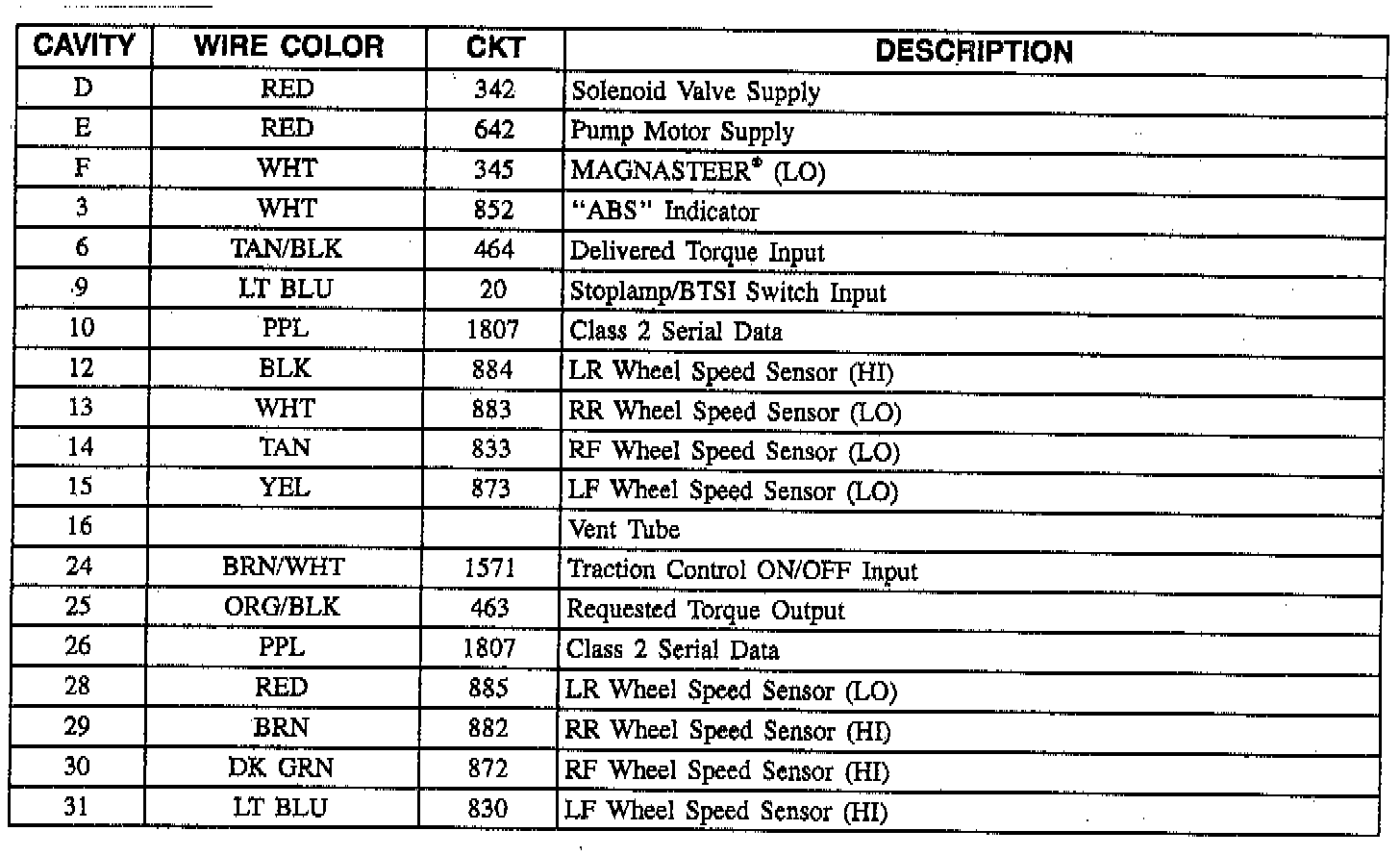

EBCM/EBTCM Pinout Table (Part 2 Of 2):
