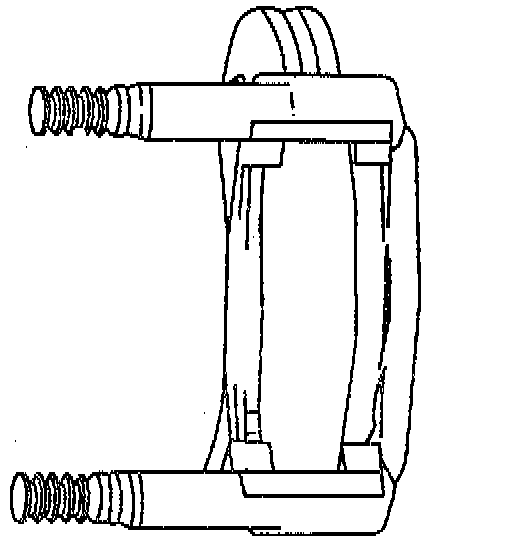

Anchor Bracket

Front Brake Caliper Components:

REMOVE OR DISCONNECT
1. Caliper.
2. Pads from anchor bracket
3. Pad retainers from bracket.

Caliper Anchor Bracket:

4. Caliper anchor bracket bolts.
5. Anchor bracket.

NOTE: Inspect bracket for cracks. Replace if necessary.

INSTALL OR CONNECT
1. Lubricated bushings with silicone grease.
2. Anchor bracket. Tighten Caliper anchor bracket bolts to 185 Nm (137 ft. lbs.).

NOTE: Apply a few drops of Loctite, or equivalent to threads of caliper anchor bracket bolts before installing or replace with new pre-coated bolts.

3. Pad retainers.
4. Pads.
5. Caliper.
