Home >> Buick >> 1997 >> Park Avenue V6-3.8L VIN K >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Diagrams

Keyless Entry Module: Diagrams

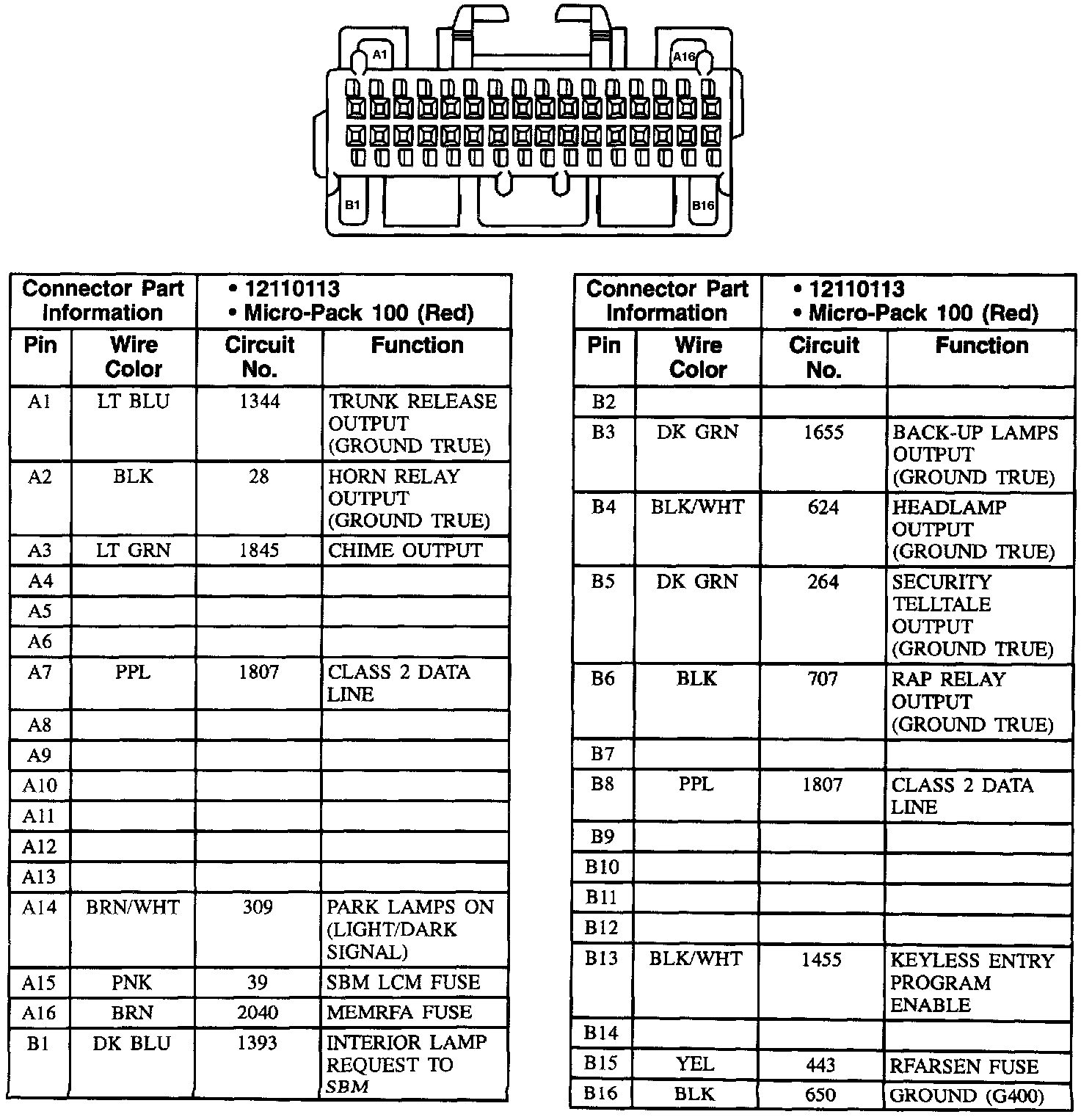

Remote Function Actuator (RFA) Module:
