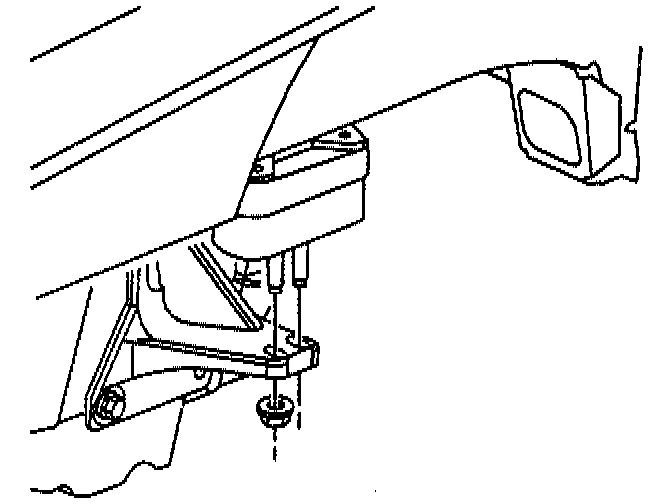

Rear Mount

REMOVE OR DISCONNECT
1. Raise vehicle.
2. Support transaxle with jackstand.








3. Nuts and bolts from mount anti bracket.





4. Mount and bracket.

INSTALL OR CONNECT
1. Mount.
2. Bolts (2).
- Tighten bolt to 50 Nm (37 ft. lbs.).

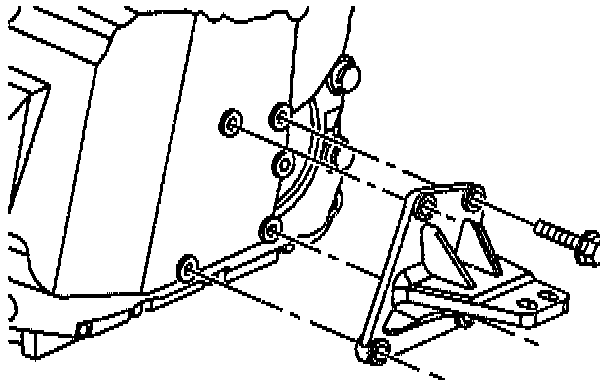

3. Bracket.
4. Bolts (3).
- Tighten bolt to 75 Nm (55 ft. lbs.).
5. Nuts (1)
- Tighten nuts to 40 Nm (29 ft. lbs.).
6. Remove jackstand.
7. Lower vehicle.
