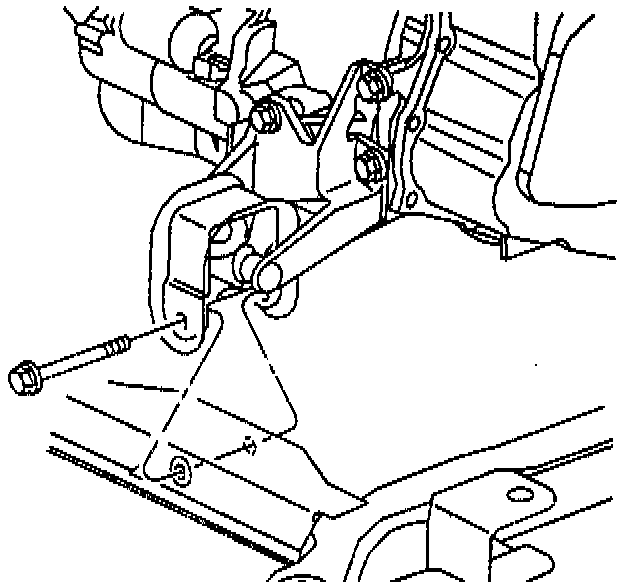

Left Mount

REMOVE OR DISCONNECT
1. Raise vehicle.
2. Support transaxle with jackstand(s).
3. Bolt from frame to run-out.
4. Bolts from mount to transaxle.
5. Mount.

INSTALL OR CONNECT
1. Mount into position.
2. Bolts mount to transaxle.
3. Bolt, frame to mount.
- Tighten:
^ Mount to transaxle bolts to 58 Nm (43 ft. lbs.).
^ Frame to mount bolt to 85 Nm (63 ft. lbs.).
4. Remove jackstand.
5. Louver vehicle.
