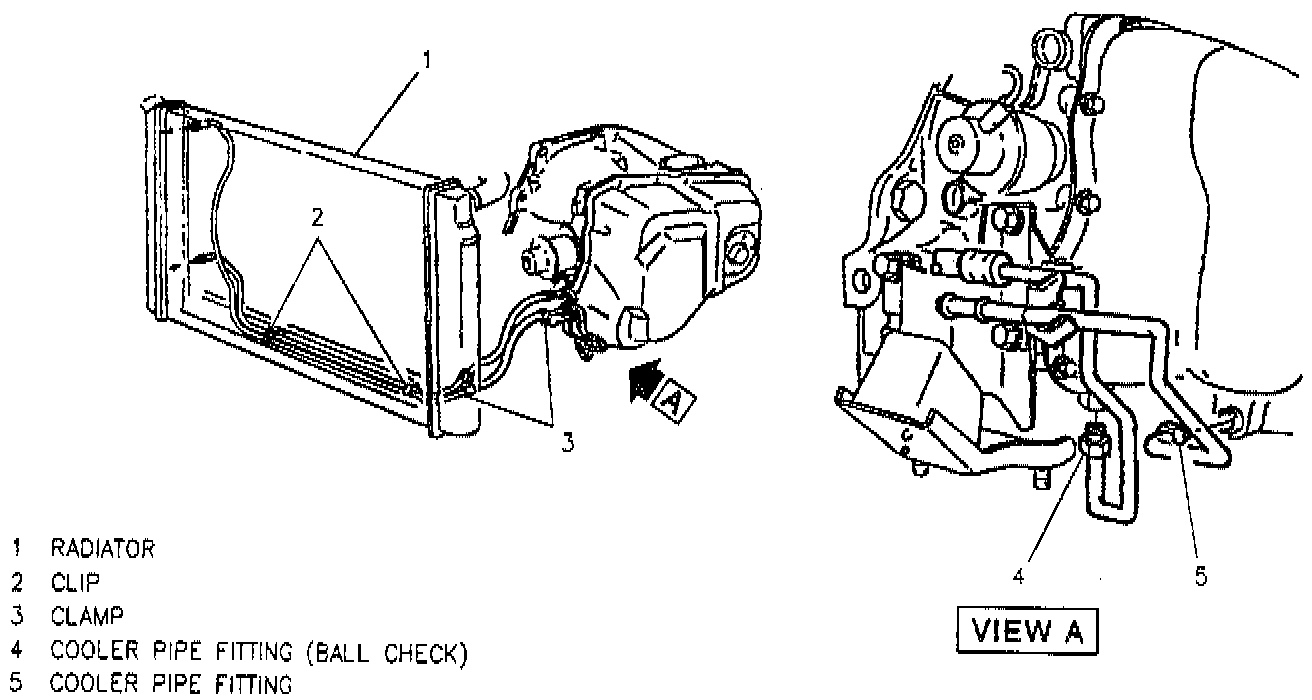

Oil Cooler Pipes

REMOVE OR DISCONNECT
1. Transaxle cooler hose clamps and hose from pipe.
2. Bolt and clamp from motor mount.
3. Pipe from radiator.
4. Pipe from transaxle

INSTALL OR CONNECT
1. Pipe to transaxle.
- Tighten
^ Ball check fitting to 52 Nm (38 ft. lbs.).
^ Pipe fitting to 38 Nm (28 ft. lbs.).
2. Pipe to radiator.
- Tighten pipe fitting to 38 Nm (28 ft. lbs.).
3. Clamp and bolt to motor mount.
4. Hose anti clamps.
- Tighten clamps to 2 Nm (16 inch lbs.).
