Lights - Revised Turn/Hazard Flasher Replacement
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 73-83-14
Date: April, 1997
SERVICE MANUAL UPDATE
Subject:
Section 8C - Revised Procedure and Illustration for Hazard/Turn Signal Flasher Replacement
Model:
1997 Buick Park Avenue
This bulletin is being issued to revise the hazard/turn signal flasher replacement procedure in Section 8C of the Service Manual.
Remove or Disconnect
1. Left sound insulator, screws and electrical connections.
2. Brake switches from brake pedal bracket. Refer to Brakes in the Service Manual.
3. Lower end of in-car temp temperature duct from muffler by pulling off.
4. In-car temp duct muffler from HVAC case.
5. Disconnect electrical connections from the Panel Dimming Module (PDM) and the Lighting Control Module (LCM).
6. Remove the retainer from bracket supporting the Panel Dimming Module (PDM) and the Lighting Control Module (LCM).
7. Remove the Panel Dimming Module (PDM) and the Light Control Module (LCM).
8. Remove screw from HVAC duct support bracket and push the duct forward in vehicle to increase clearance.
9. Remove the flasher module from the bracket. (Twist module to aid in removal; breakage of the tab on module may be necessary.)
Modify

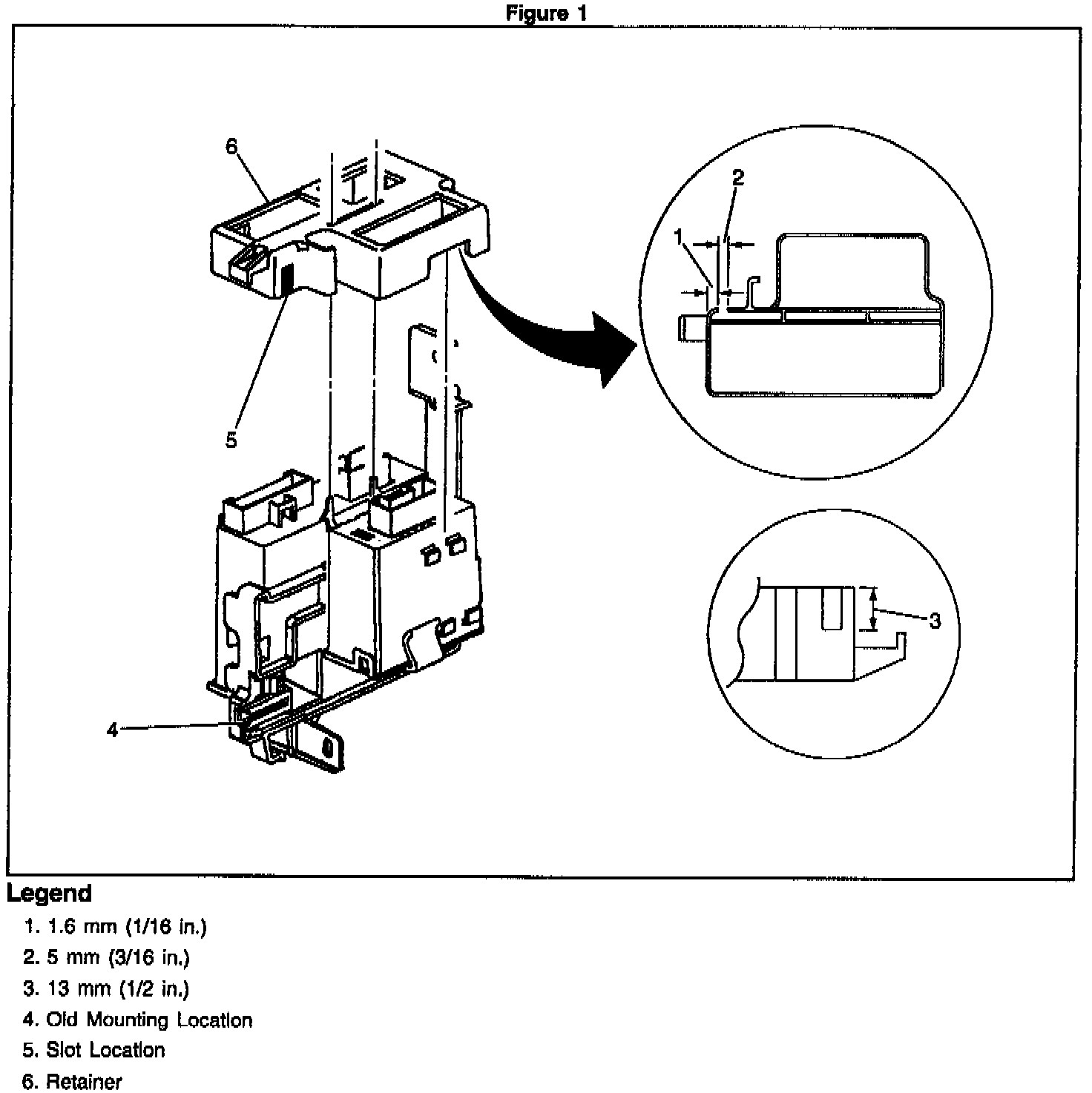

1. Measure and draw out dimensions shown in the illustration.
2. Using a utility knife or similar cutting tool, cut out slot in module retainer.
3. Test the fit of the flasher module in the slot. Adjust size of slot to allow the flasher module to fit snug but not over tight.
Install or Connect
1. Install the HVAC duct support bracket screw to the cross car beam.
2. Install the PDM and the LCM into bracket.
3. Connect the electrical connector to the flasher module.
4. Align the module retainer to the module bracket but do not fully install.
5. Slide the flasher module into the slot in the module retainer.
6. Push on the module retainer to engage locking tabs.
7. Reconnect the PDM and LCM electrical connections.
8. Install in-car temp duct muffler to HVAC case.
9. Lower end of in-car temp temperature duct to muffler by pushing on until seated.
10. Brake switches to brake pedal bracket. Refer to Brakes in the Service Manual.
11. Left sound insulator, (2) screws and (2) electrical connections.
