High Side (Liquid) Refrigerant Line

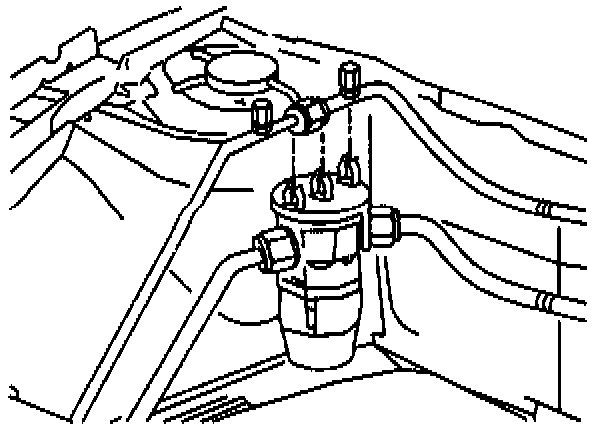

Evaporator Connection:

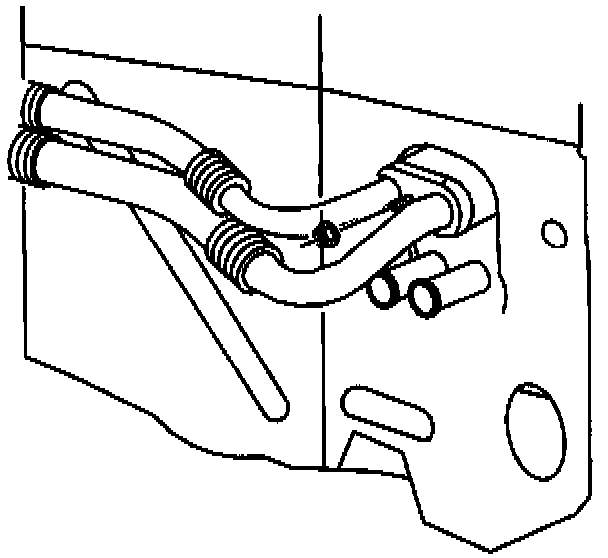

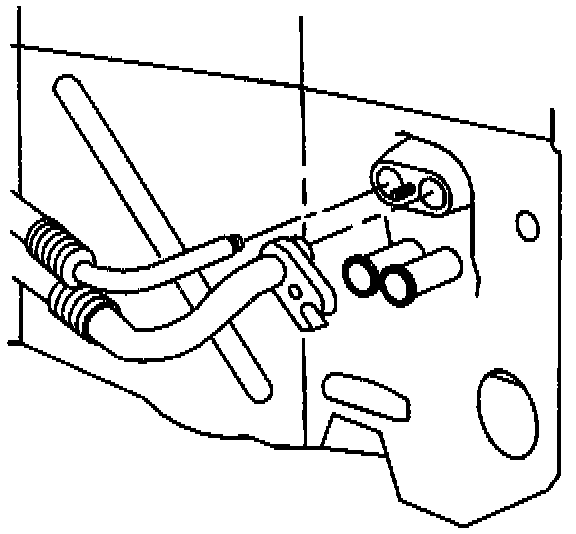

Evaporator Lines:

Condenser Line Connection:

Liquid Line Retaining Clips:

Tool Required:
J 39500 Air Conditioning Refrigerant Recovery, Recycling and Recharging (ACR4) System

Remove or Disconnect

^ Recover refrigerant from A/C system.
1. Condenser outlet.
2. Evaporator inlet.
3. A/C line clips.
4. High-side (liquid) refrigerant line.

Install or Connect

1. A/C line clips after positioning high-side (liquid) refrigerant line.
2. Condenser outlet and evaporator inlet dual O-ring joints simultaneously (hand tight) to assure correct line orientation, then tighten connections to specifications.

Tighten
^ Dual O-ring joint connections to 24 N.m (18 lb. ft.).

^ Evacuate, charge and leak test A/C system.
