Blower Motor: Service and Repair

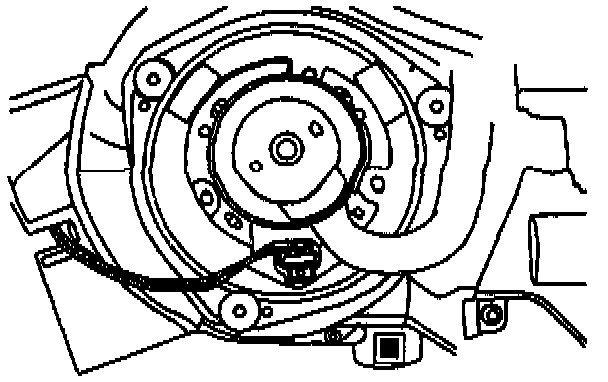

Blower Motor:

Remove or Disconnect

1. Right side sound insulator.
2. Electrical connector from blower motor.
3. Cooling tube from blower motor.
4. Screws attaching blower motor to heater and A/C module assembly.
5. Blower motor and fan.

Install or Connect

1. Blower motor to heater and A/C module assembly with attaching screws.
2. Cooling tube to blower motor.
3. Electrical connector to blower motor.
4. Right side sound insulator.
