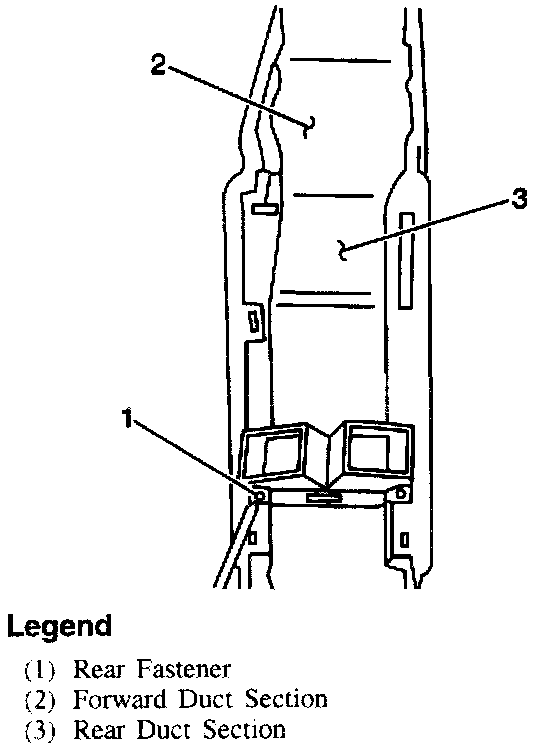

Rear HVAC Duct With Console Replacement

Description:

Remove or Disconnect
1. Console
2. Rear console panel.
3. Four fasteners securing duct to console.
4. Duct.

Install or Connect
1. Align duct to console.
2. Fasteners from duct to console.
3. Rear console panel.
4. Console.
