Antilock Brakes / Traction Control Systems: Tools and Equipment

Special Tools:

CAUTION: Never use the J 39700, J 39700-25, or the J 41247 for any circuit testing except that specified in the diagnostic tables. ABS/TCS system damage, other vehicle system or component damage, or damage to the J 39700, J 39700-25, J 41247 may result.

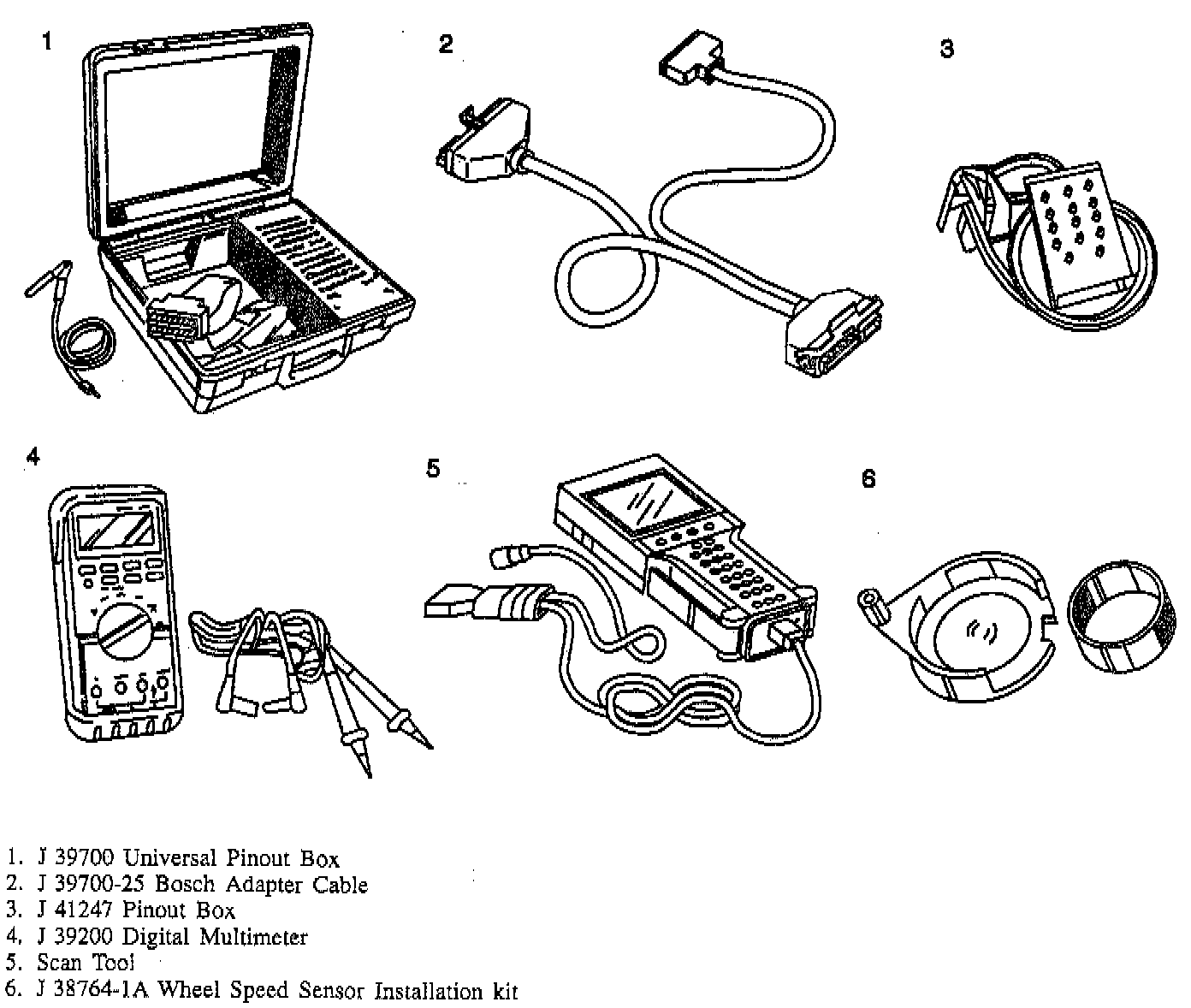

J 39700
The J 39700 Universal Pinout Box must be used with the J 39700-25 Bosch Adapter Cable. Always connect the J 39700 assembly to the vehicle harness and/or Electronic Brake/Traction Control Module (EBCM/EBTCM) as directed by the diagnostic table. Ensure the ignition is "OFF" when connecting or disconnecting the J 39700.

J 41247
The J 41247 is a Pinout box that is connected to the BPMV with the EBCM/EBTCM removed. It is used with the J 39200 Digital Multimeter (or equivalent), to measure resistance values of the solenoid valves located in the Brake Pressure Modulator Valve (BPMV).

J 38764-1A
The J 38764-1A kit includes three tools (J 38764-1 is not used for this application). Tool number J 38764-4 is used for wheel speed sensor installation. The J 38764-2 is used to protect the wheel studs from damage during wheel speed sensor installation.
