Driver/Vehicle Information Display: Service and Repair

Description:

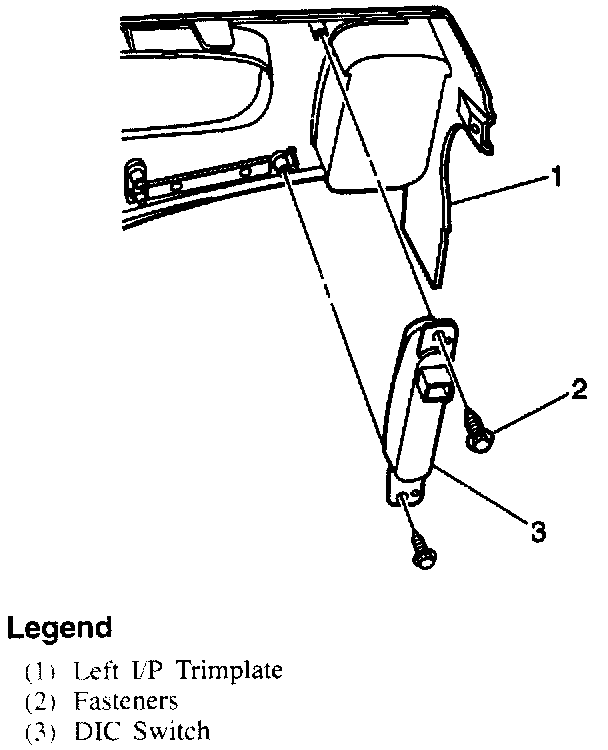

Remove or Disconnect
1. I/P cluster trim plate.
2. Electrical connector.
3. Fasteners from switch.
4. Switch.

Install or Connect
1. Switch to trim plate.
2. Fasteners.
3. Electrical connector.
