Valve Body: Service and Repair

^ Tool Required:
- J 36850 TRANSJEL

REMOVE OR DISCONNECT
1. Case side cover pan.
2. Pump.
3. Valve body bolts/screws.

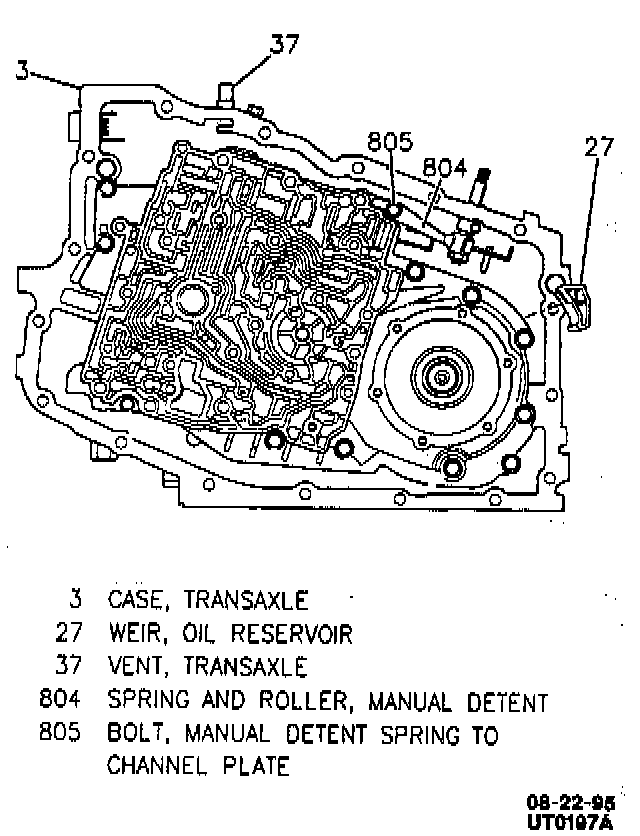

4. Valve body, keeping the spacer plate with the transaxle.
5. Spacer plate and gasket.

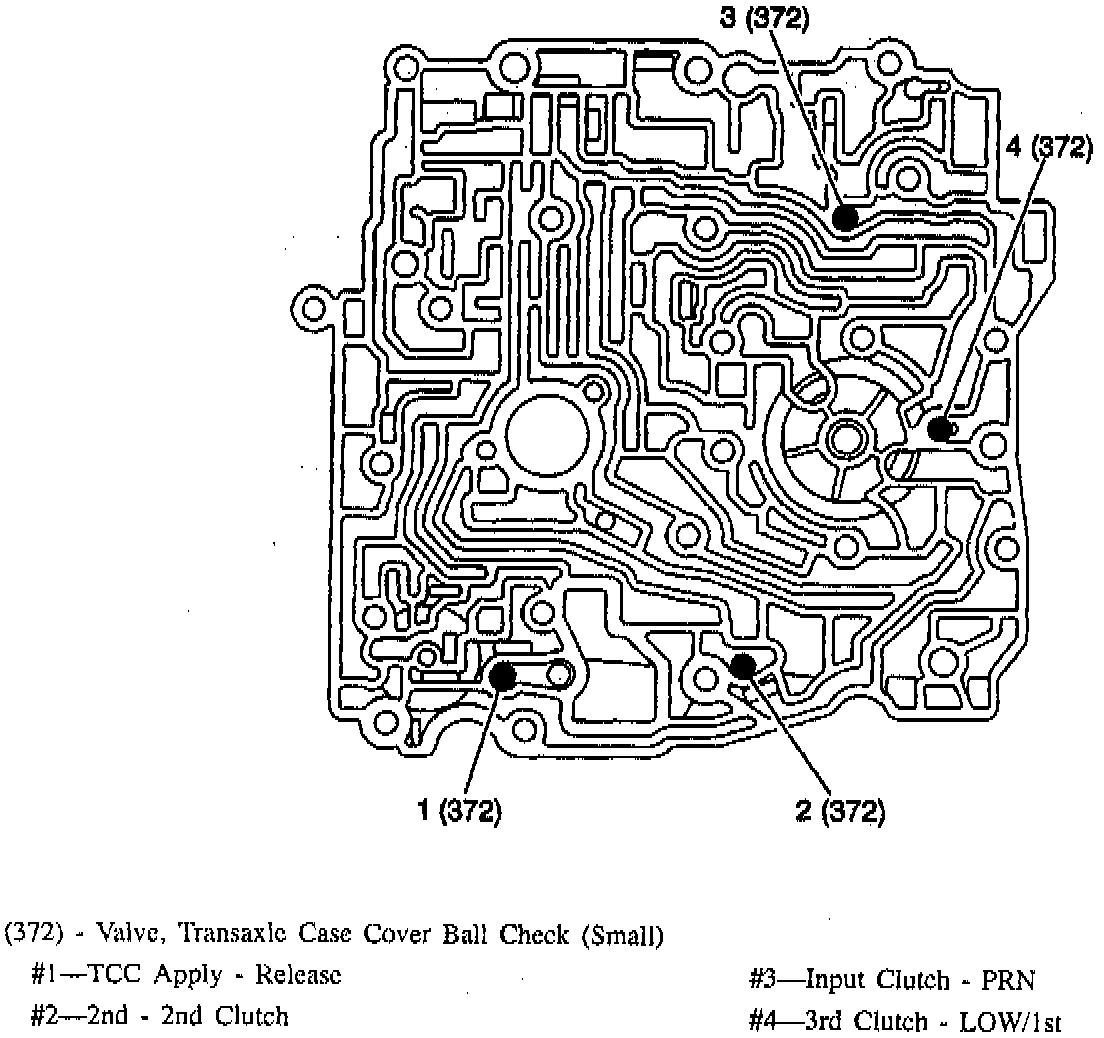

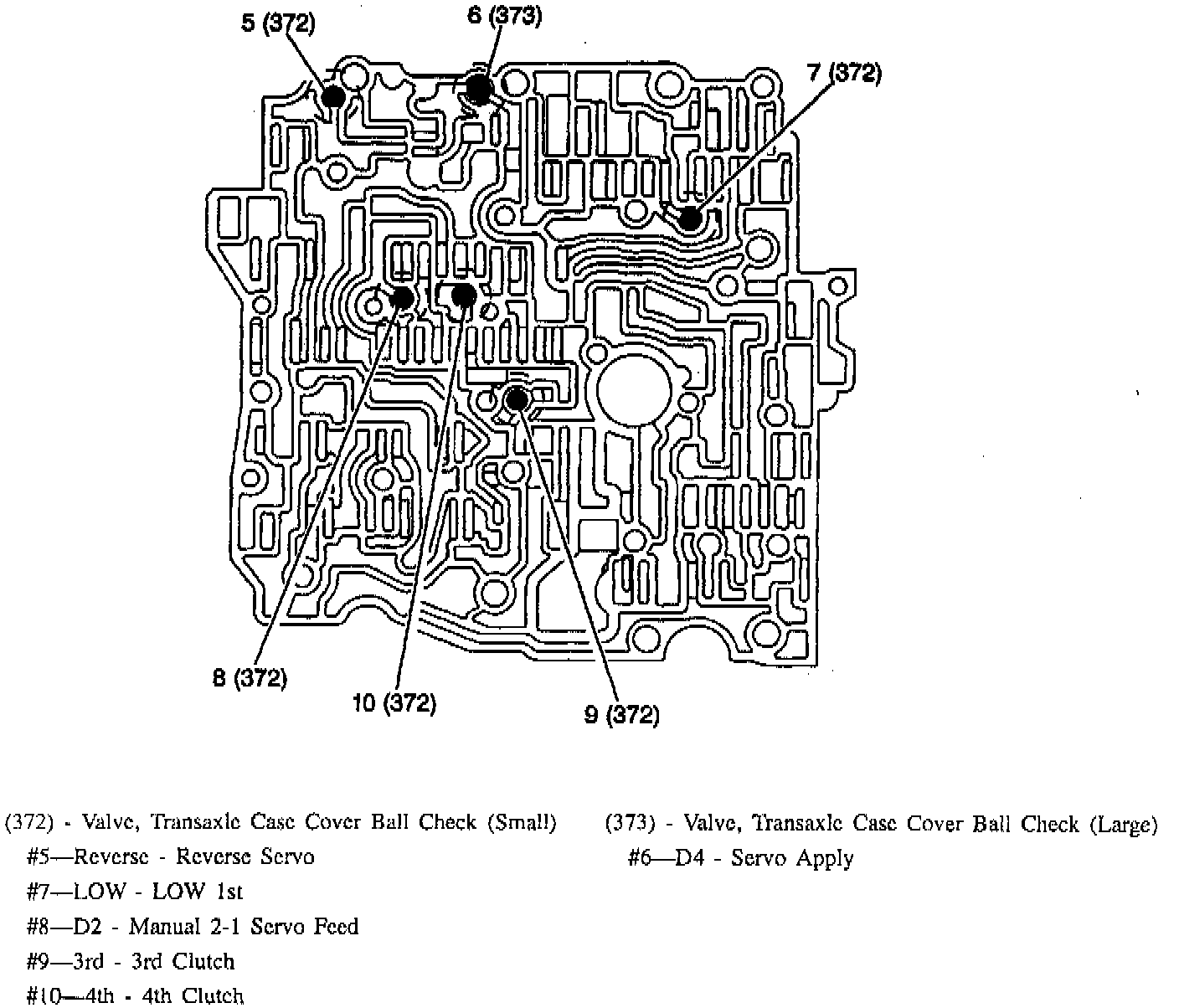

- For checkball locations, refer to images.

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

NOTICE: Do not use any type of grease to retain or hold parts during assembly of this unit. Greases other than the recommended assembly lube will change transaxle fluid characteristics and cause undesirable shift conditions and/or filter clogging.

1. Retain checkballs in their proper locations with J 36850 TRANSJEL.
2. Spacer plate and gasket.
3. Valve body and gasket.

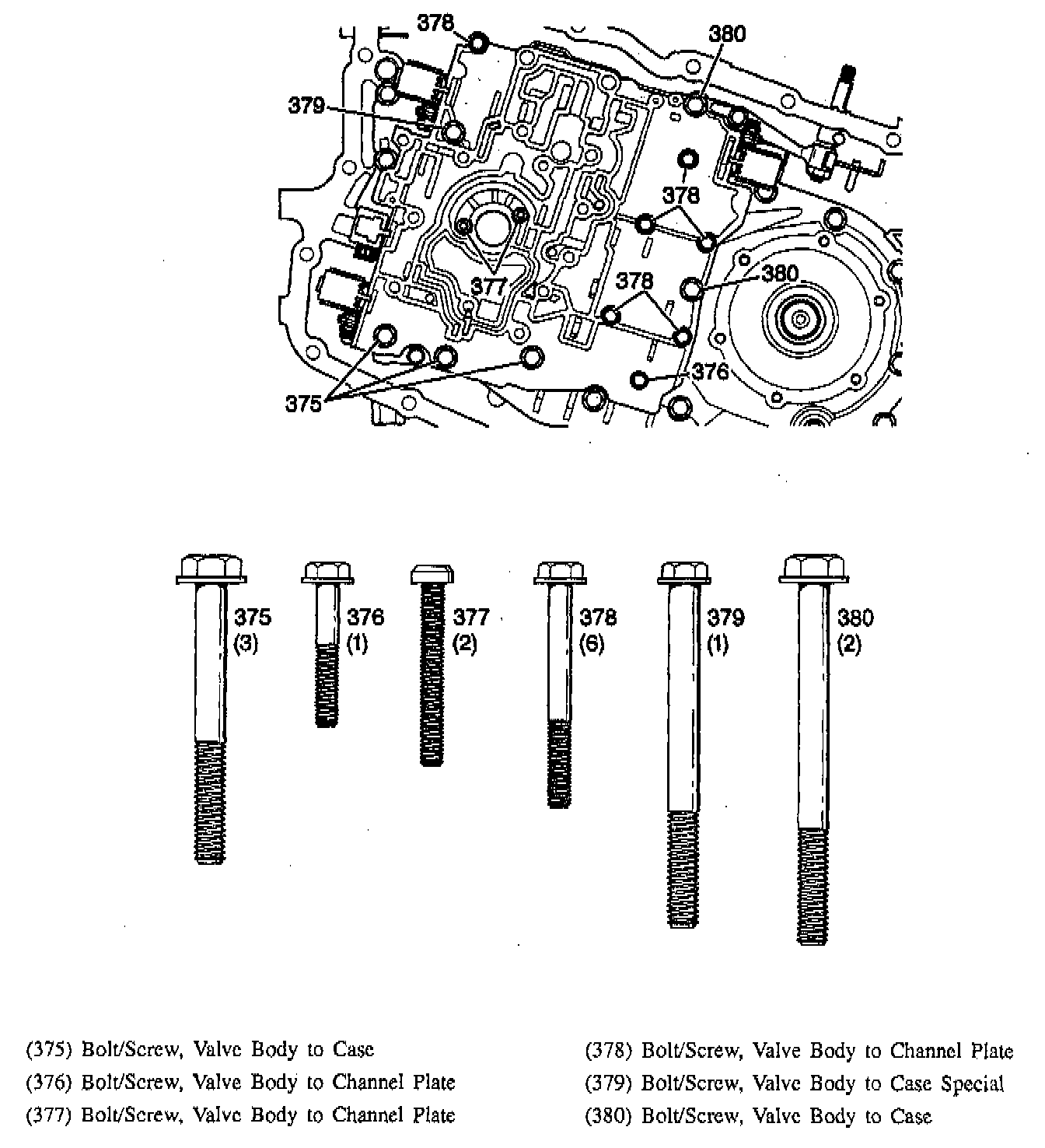

4. Valve body bolts/screws.
^ Tighten
- M6-Bolt Screw to 11 Nm (97 inch lbs.).
- M8-Bolt/Screw to 24 Nm (18 ft. lbs.).

Important: Do not use impact type tools on the valve body or pump.

5. Pump.
6. Case side cover pan.
