Door Inside Handle Escutcheon

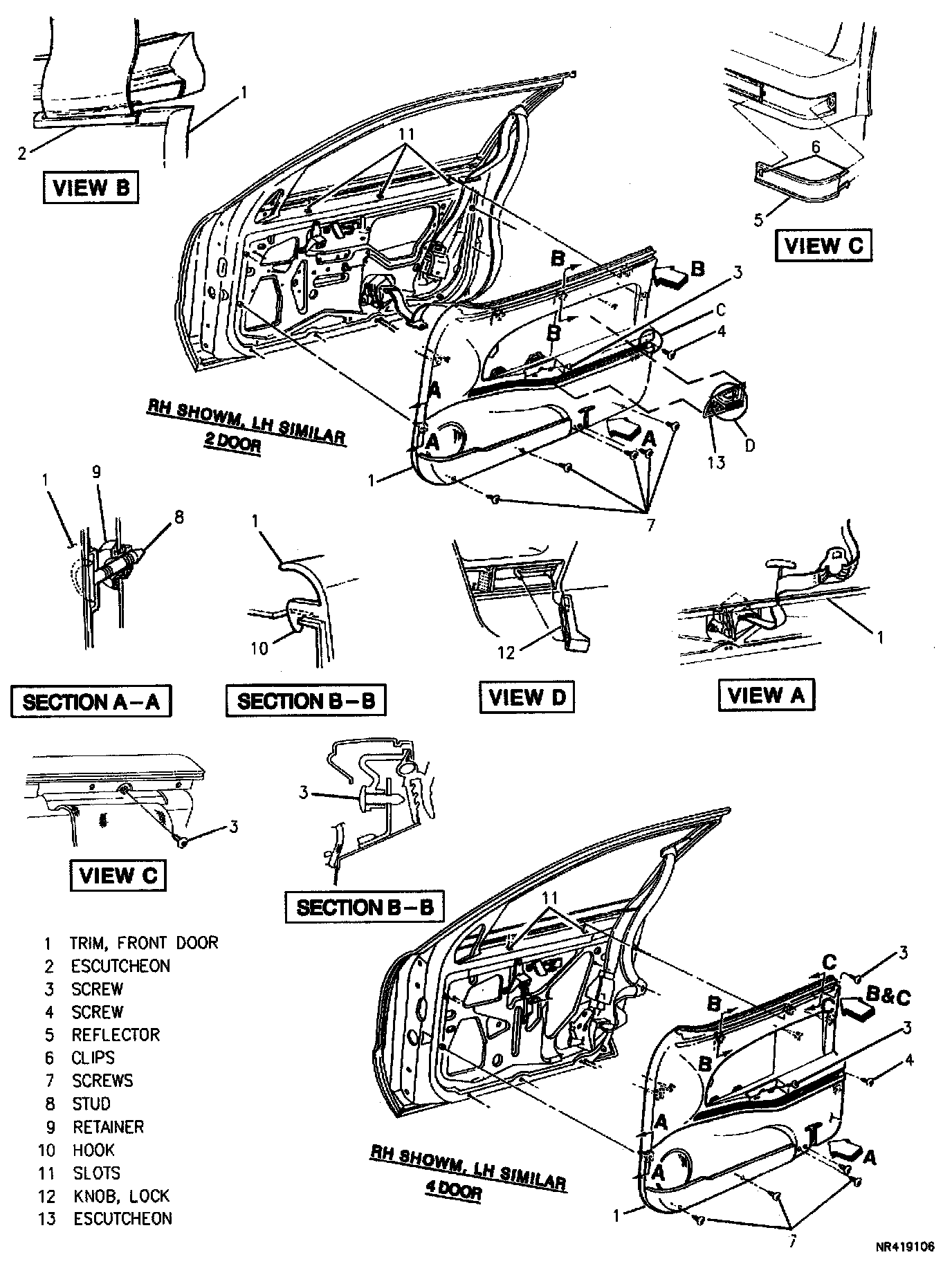

Door Trim Panel Assembly:

Remove or Disconnect

1. Pull handle.
2. Lock rod knob (12).
3. Escutcheon (2) by gently prying at bottom corner and working around.
4. Escutcheon (2) by rotating escutcheon inboard and pulling rearward to disengage flange from trim panel.
5. Electrical connector if present.

Install or Connect

1. Electrical connector.
2. Escutcheon (2) to trim panel, inserting flange in front end of trim panel opening.
3. Align studs to retainers and apply pressure on escutcheon (2) to secure.
4. Lock rod knob.
5. Pull handle.
