Electrical Diagrams

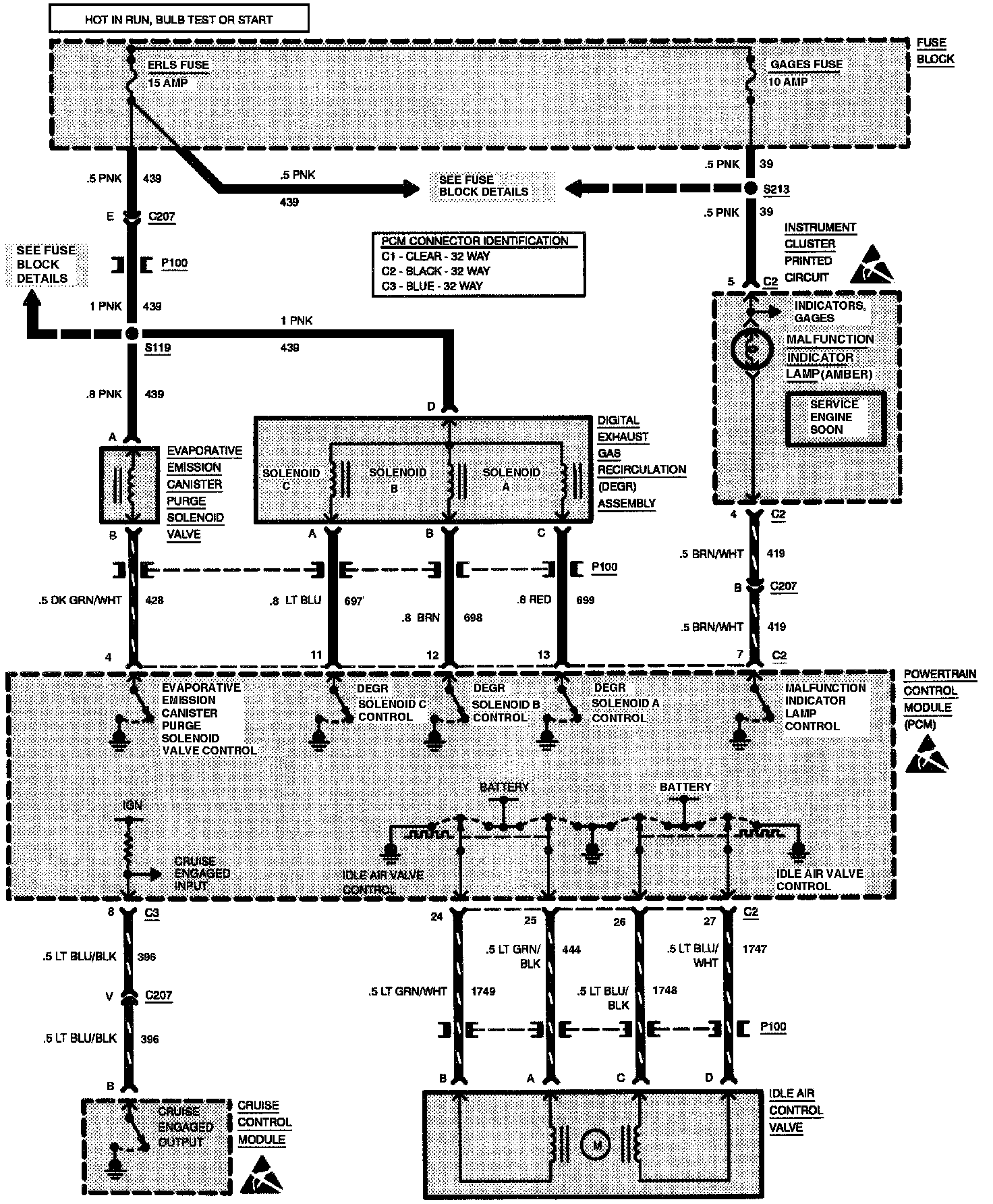

Engine Controls And Malfunction Indicator Lamp:

This diagram is one part of the Complete Set Of Powertrain Wiring Diagram located under Powertrain Management. Refer to this area if you need the accompanying diagrams. Electrical Diagrams
