Buick
>>
1994
>>
Skylark V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G302
G302

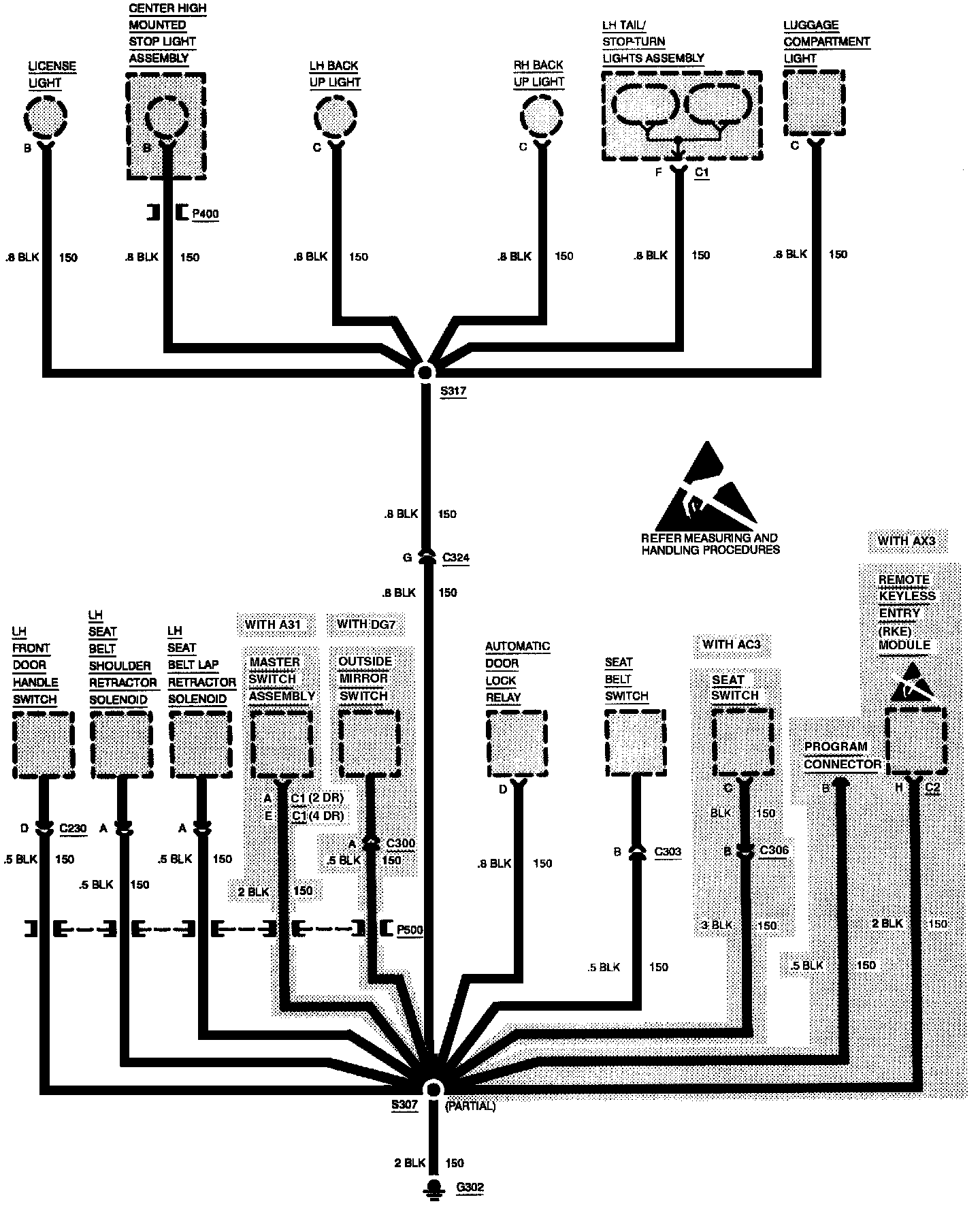

G302 (Part 1 Of 3):

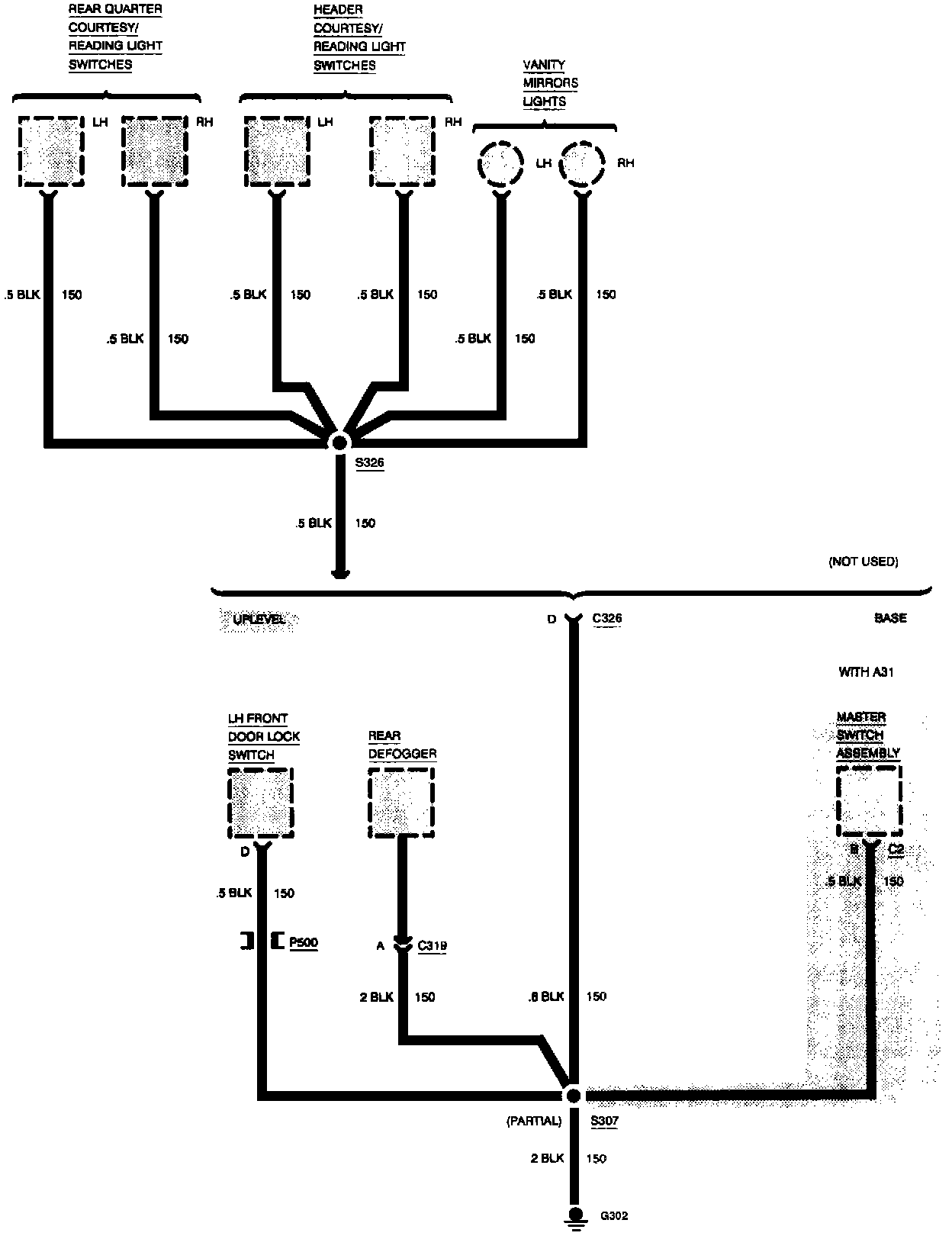

G302: Early Production (Part 2 Of 3):
G302: Late Production (Part 3 Of 3):
