Buick
>>
1994
>>
Skylark V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse Block Details
>>

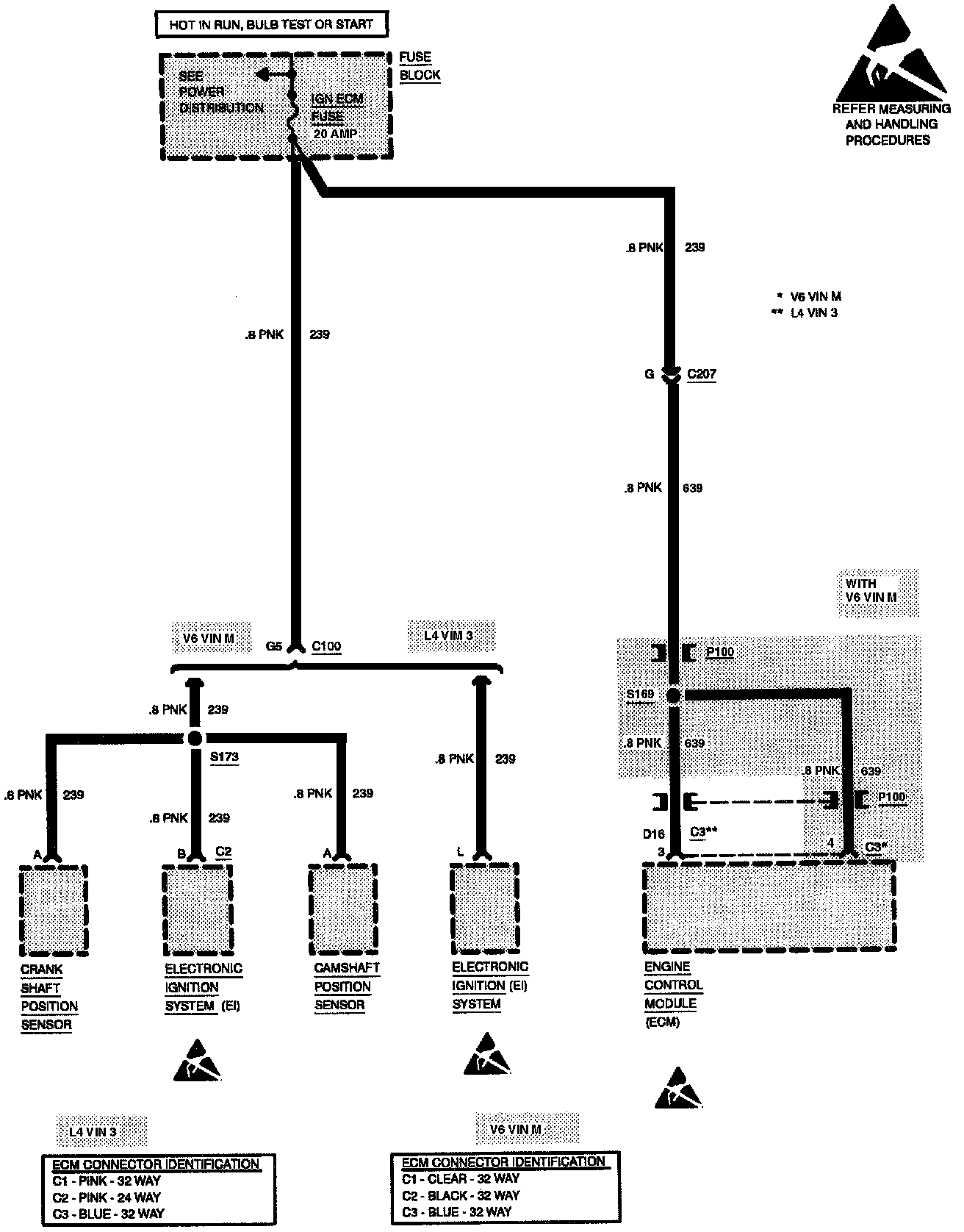

Ign ECM Fuse
Ign ECM Fuse
IGN ECM Fuse:
