Home >> Buick >> 1994 >> Skylark V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuse Block Details >> F/P Inj Fuse

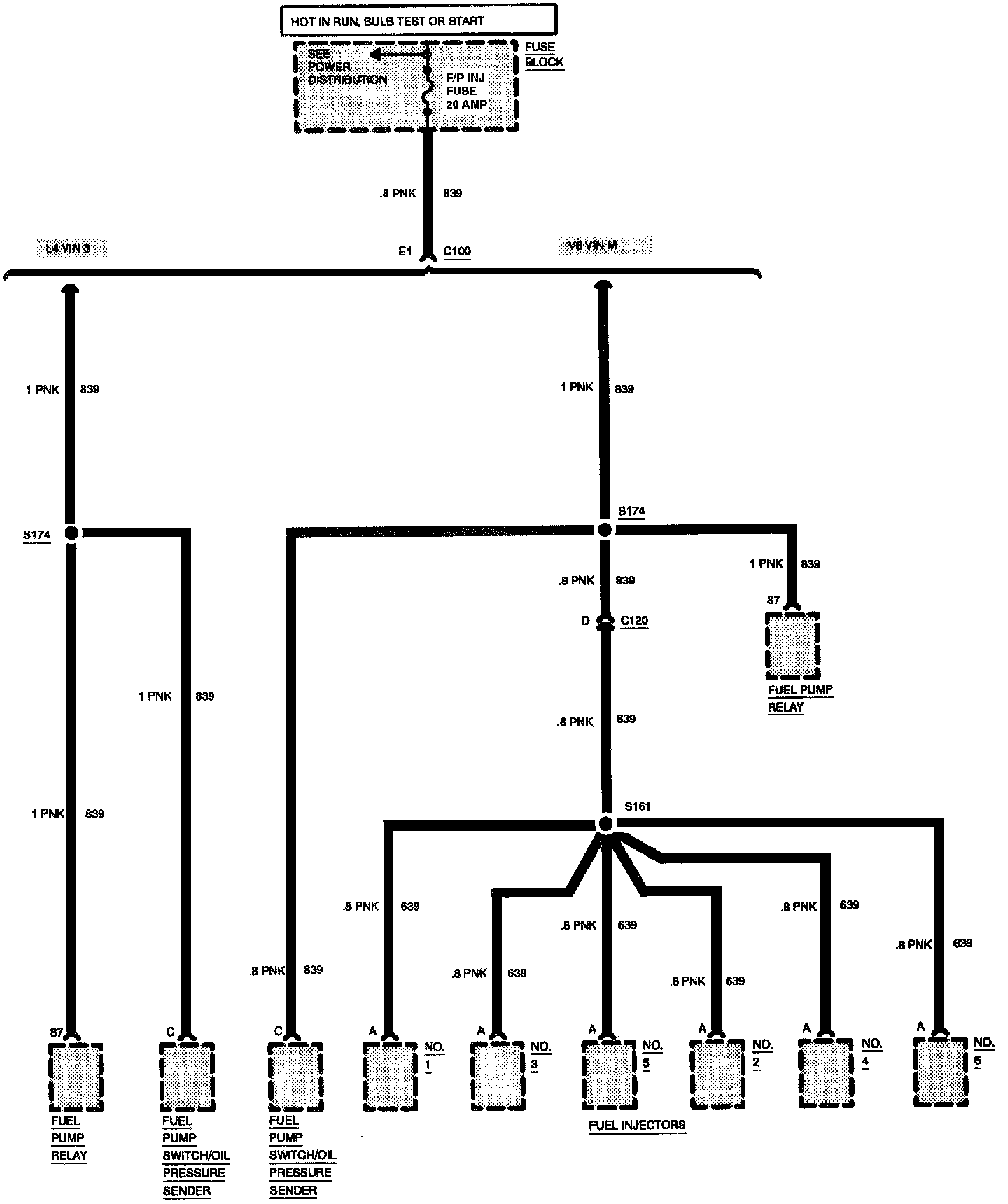

F/P Inj Fuse

F/P INJ Fuse:
