Home >> Buick >> 1994 >> Skylark V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Diagrams >> Electrical Diagrams >> With Air Conditioning >> Blower Controls

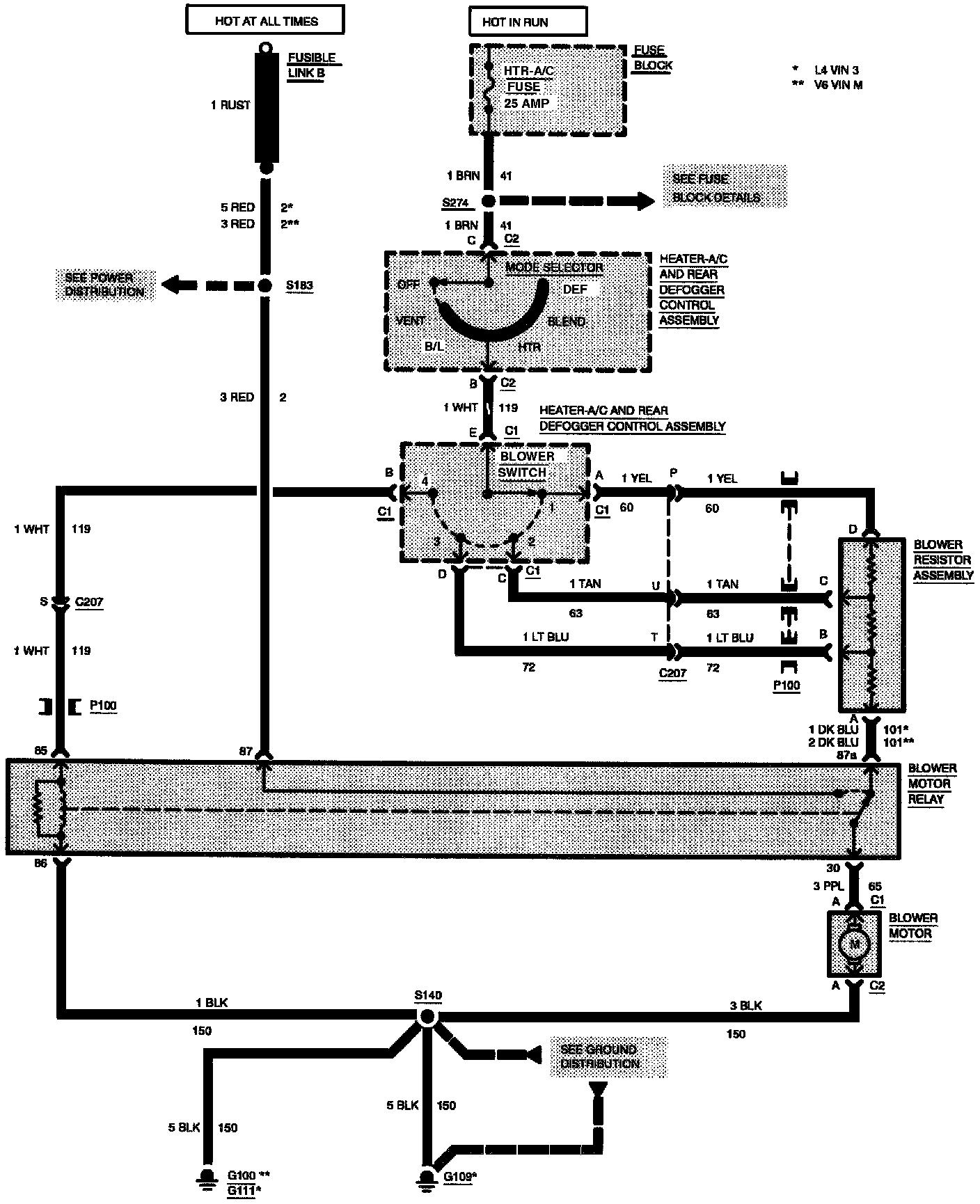

Blower Controls

HAVC: Blower Controls: C60, Manual:
