Daytime Running Lamp Control Unit
Daytime Running Lamp Control Unit

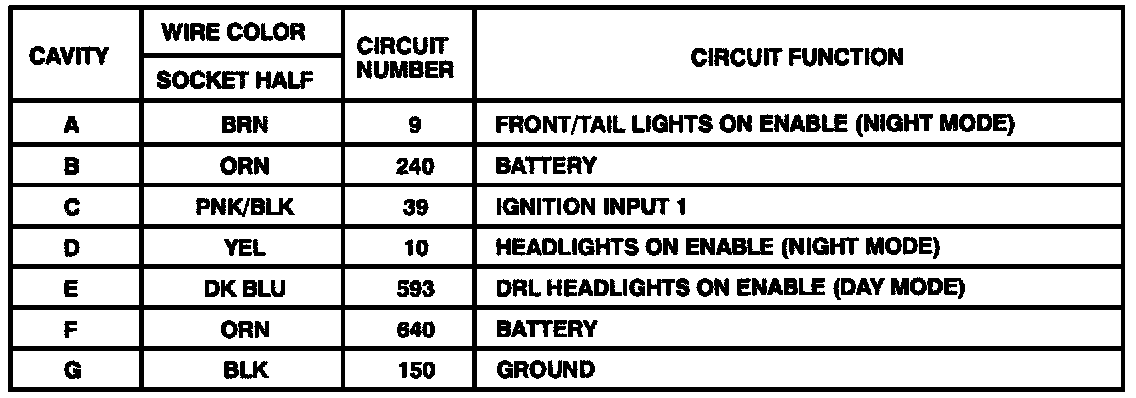

Daytime Running Lights (DRL) Module: C1:
Daytime Running Lights (DRL) Module: C1:

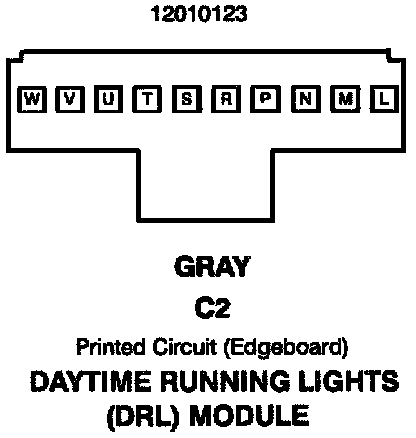

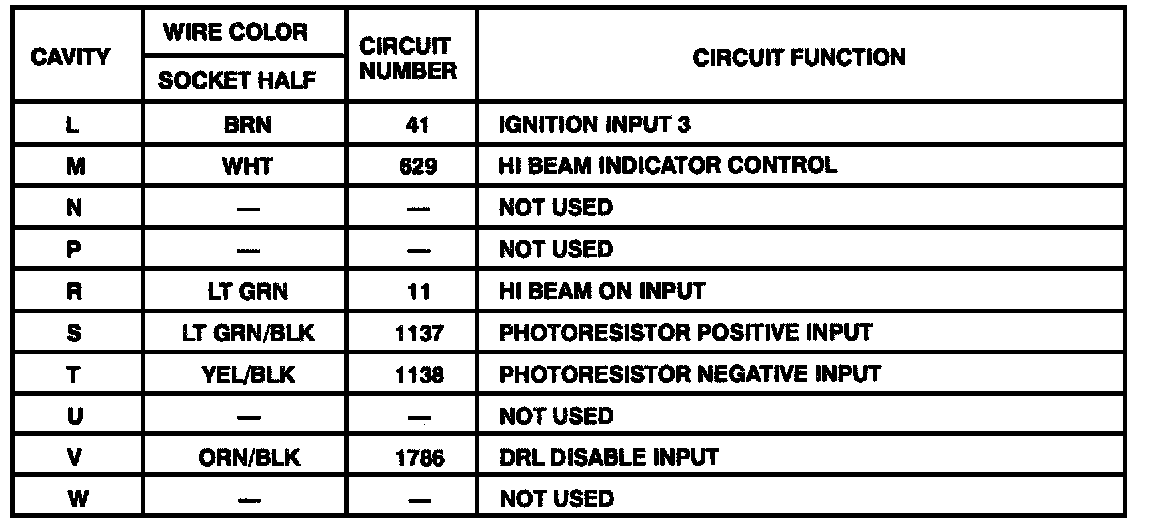

Daytime Running Lights (DRL) Module: C2:
Daytime Running Lights (DRL) Module: C2:
