Home >> Buick >> 1994 >> Skylark V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Systems >> Air Bag Control Module >> Diagnostic Energy Reserve Module (DERM)

Diagnostic Energy Reserve Module (DERM)

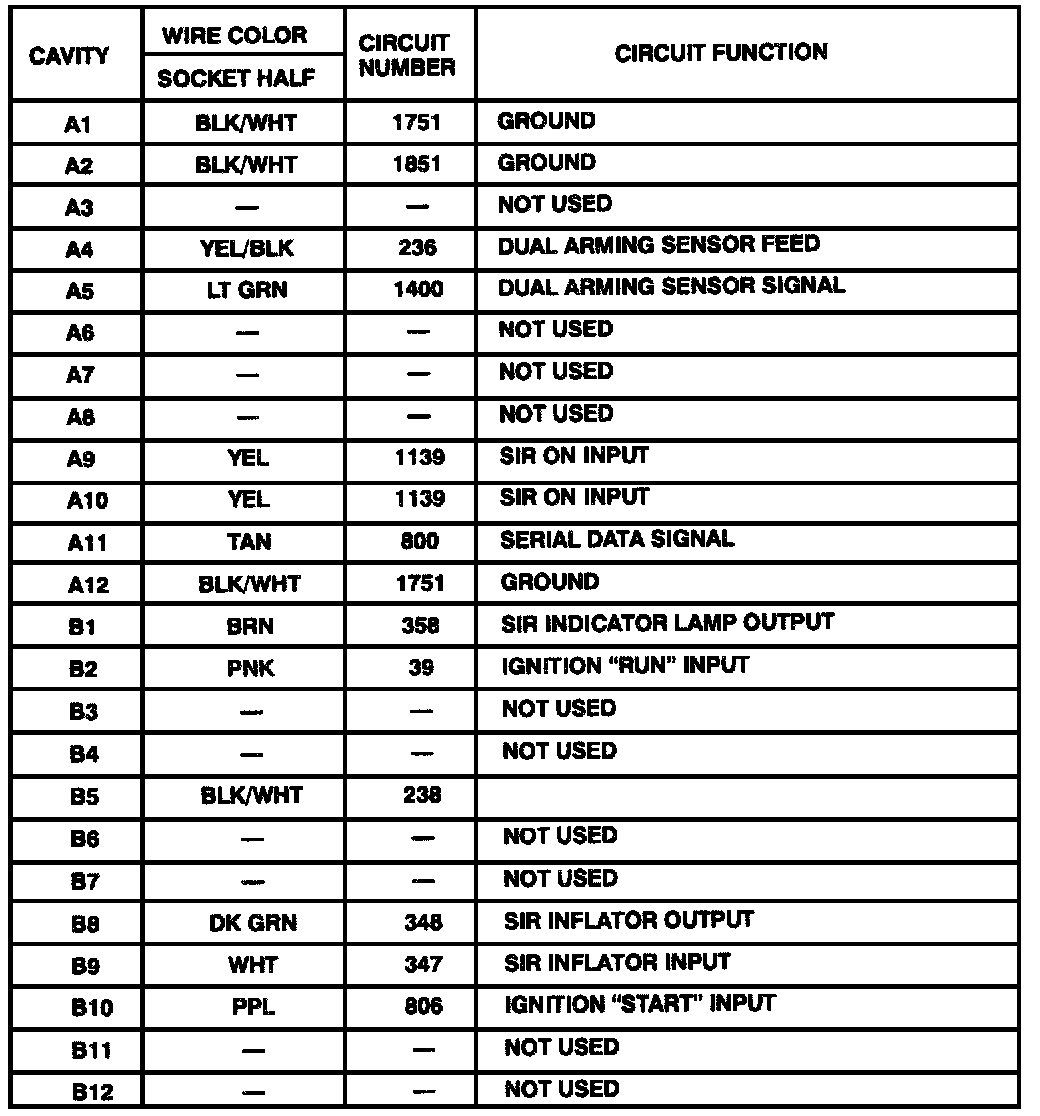

Diagnostic Energy Reserve Module (DERM):

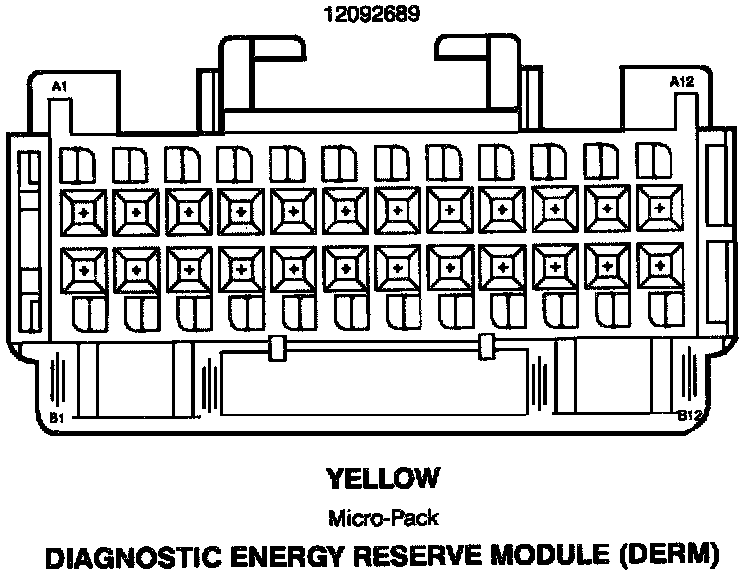

Diagnostic Energy Reserve Module (DERM):
