Buick
>>
1994
>>
Skylark V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

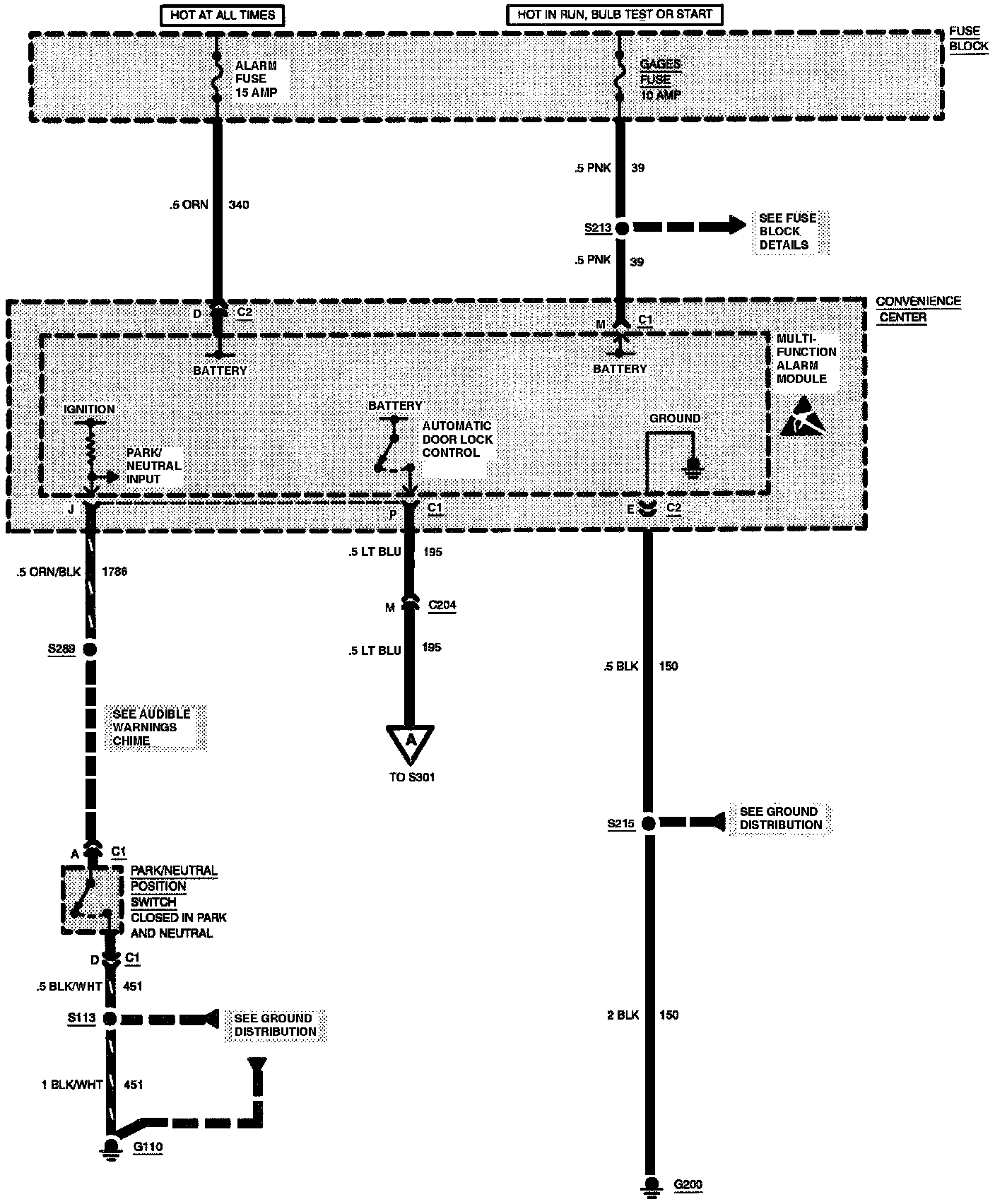

Keyless Entry: AX3 (Part 1 Of 4):

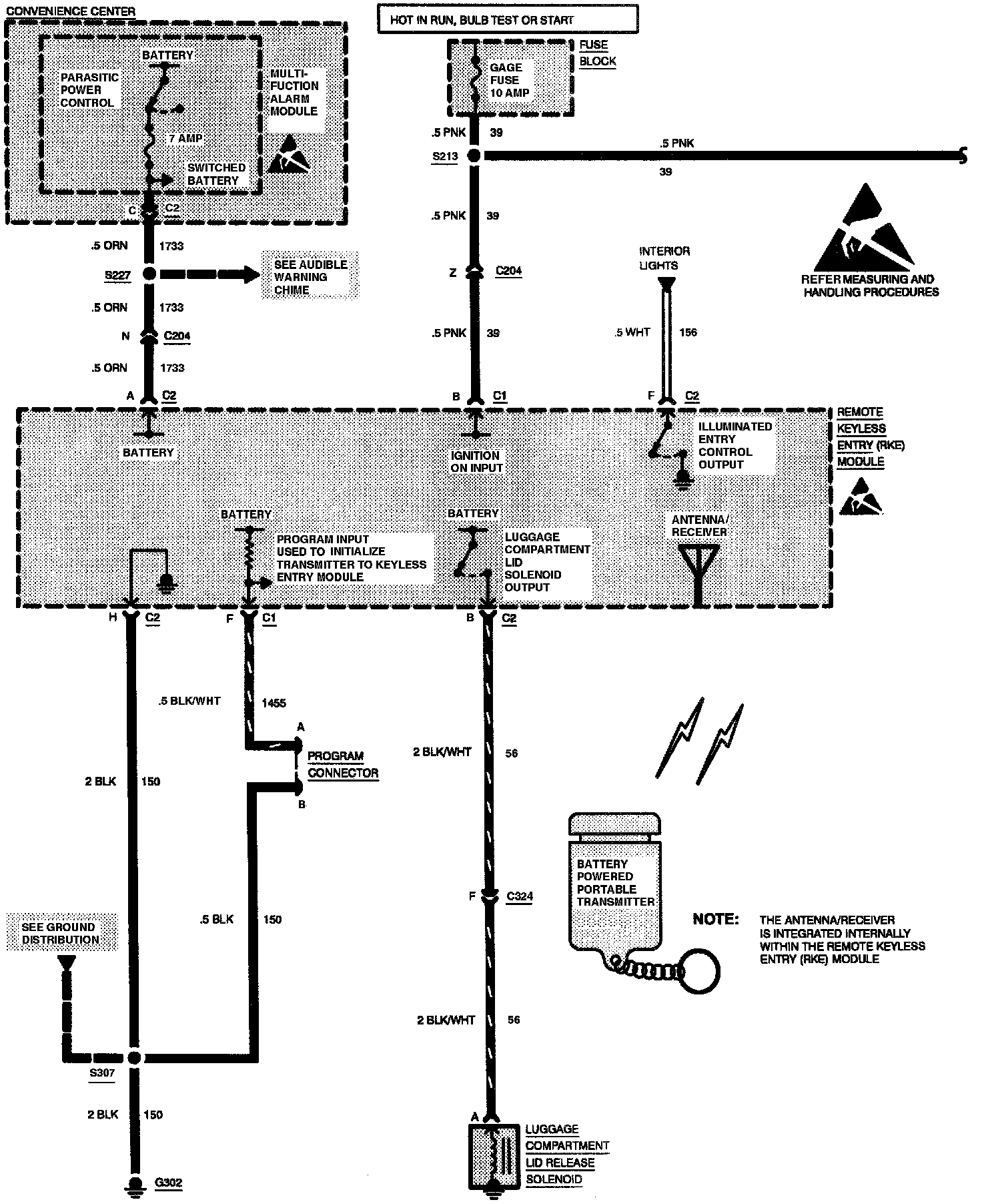

Keyless Entry: AX3 (Part 2 Of 4):

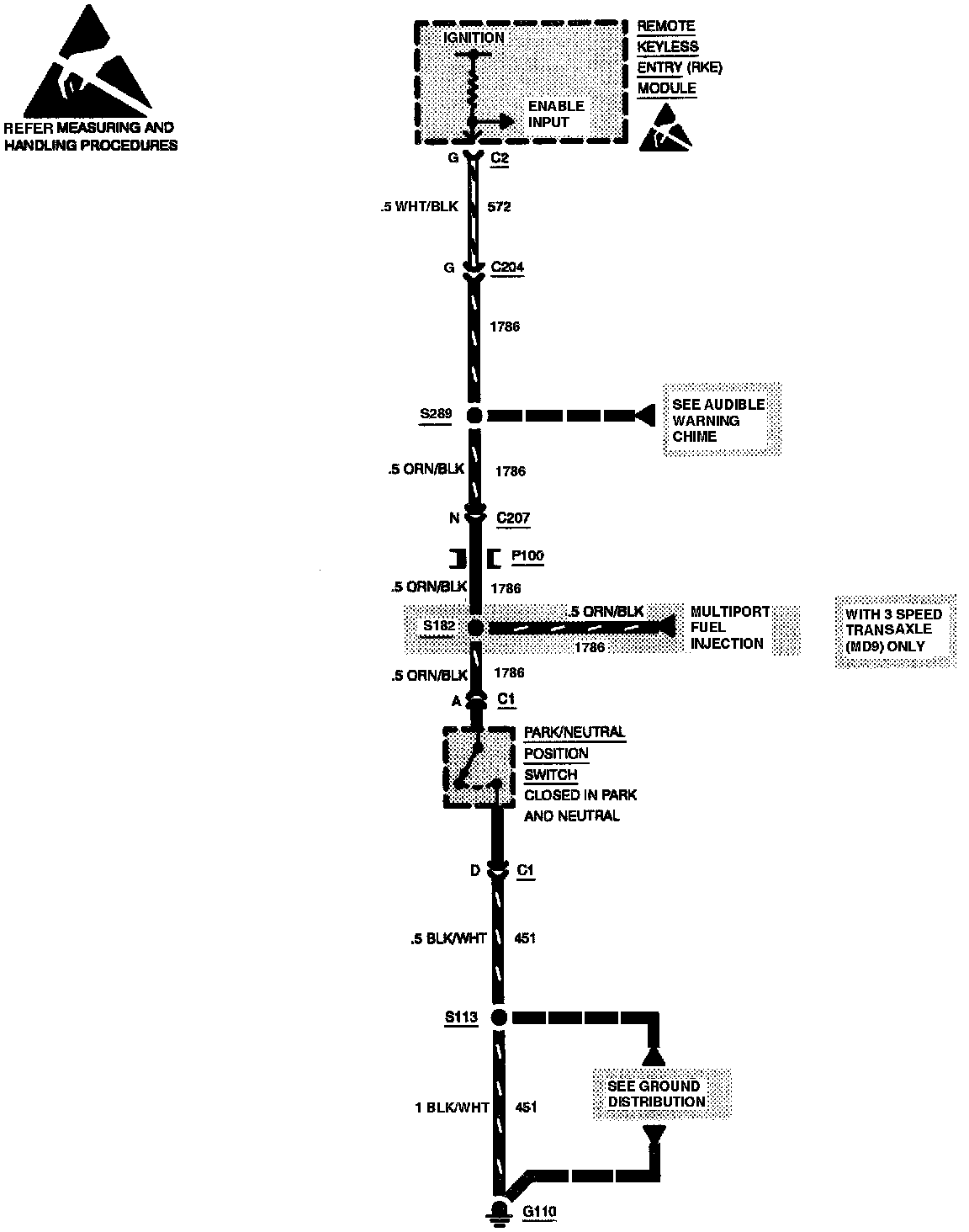

Keyless Entry: AX3 (Part 3 Of 4):
Keyless Entry: AX3 (Part 4 Of 4):
