Home
>>
Buick
>>
1994
>>
Roadmaster V8-350 5.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Ground Distribution
>>
G202
G202

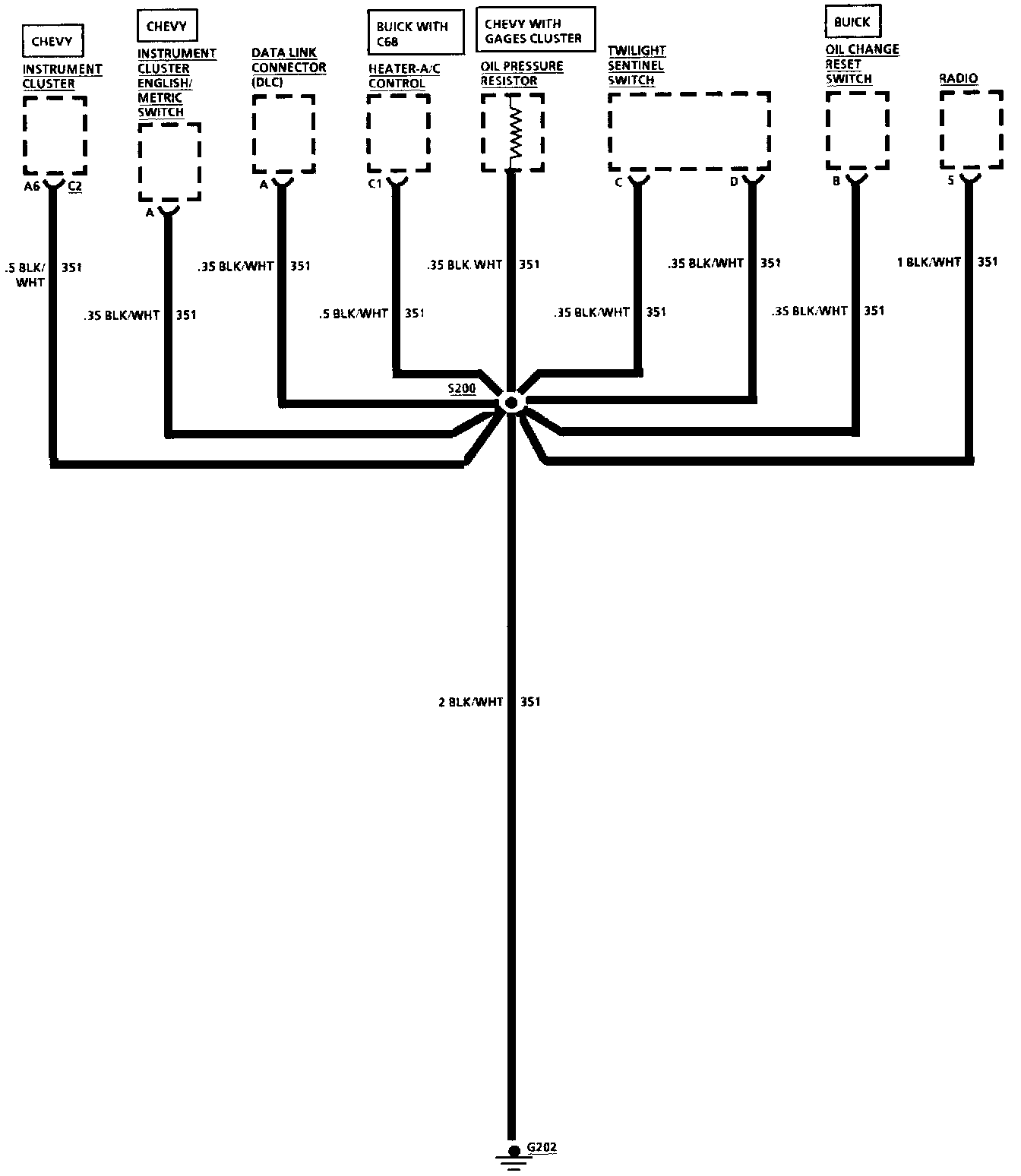

G202: Interior Body Ground:
