Exhaust Manifold: Service and Repair

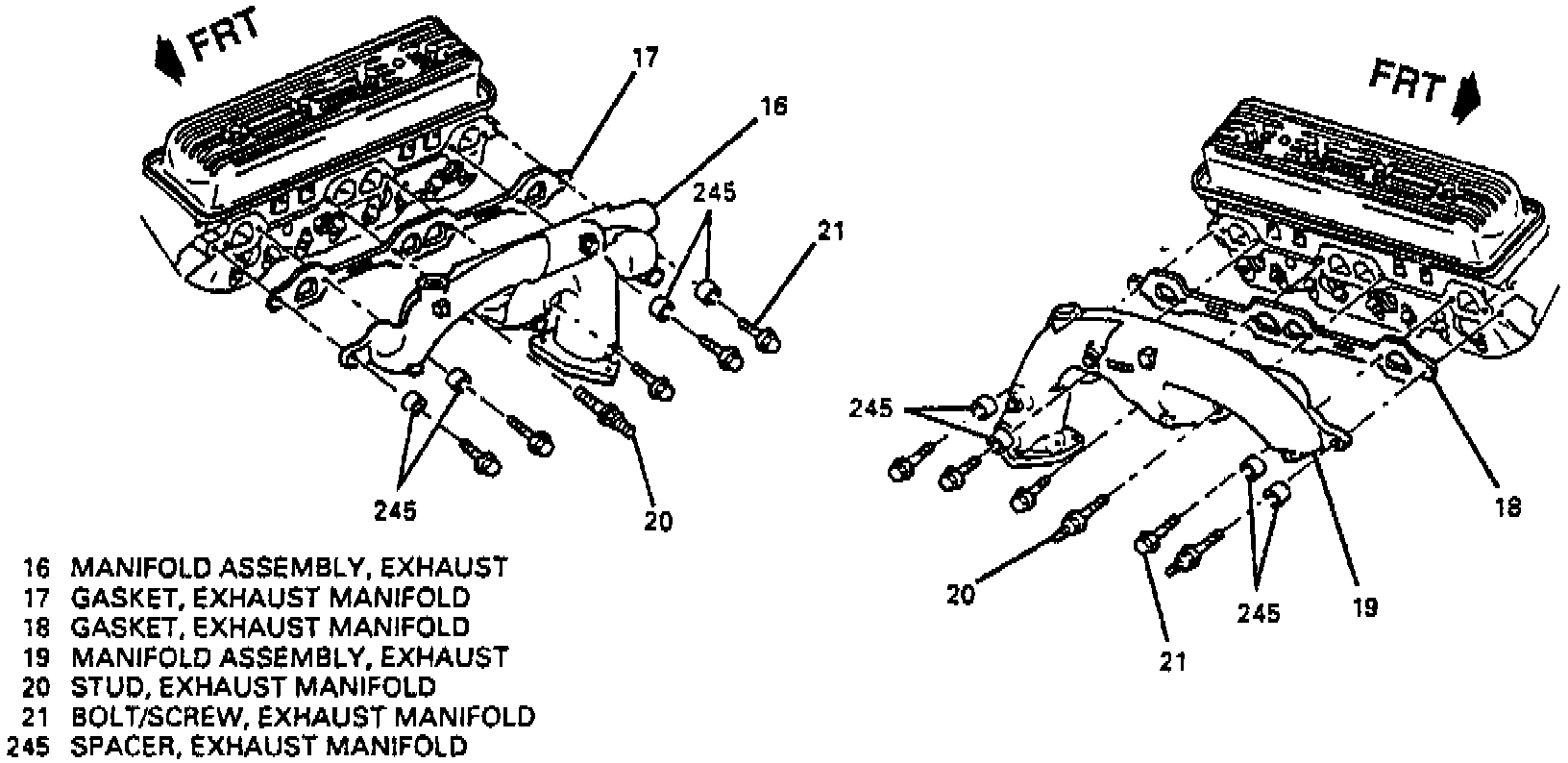

Fig. 3 Exhaust Manifold Installation:

1. Remove warm up three-way catalytic converter and gasket from exhaust manifold.
2. Remove oil level indicator tube.
3. Remove secondary air injection pipe fitting from exhaust manifold.
4. Remove generator rear lower braces.
5. Remove exhaust manifold bolts/screws, studs and spacers, Fig. 3.
6. Remove exhaust manifold and gasket.
7. Reverse procedure to install.
