Door Trim Pads - Noisy
Group Ref.: BodyBulletin No.: 434027
Date: April, 1994
SUBJECT:
NOISY DOOR TRIM PADS (INSTALL SCREWS)
MODEL:
1994 BUICK ROADMASTER
CONDITION:
Some owners may comment on noisy door trim pads.
CAUSE:
Armrest pad is loose in door trim.
CORRECTION:
Add screws to secure armrest.
1. Remove door trim and place back side up on a clean work surface.
2. Pull sound deadening material away from trim pad enough to expose armrest area.

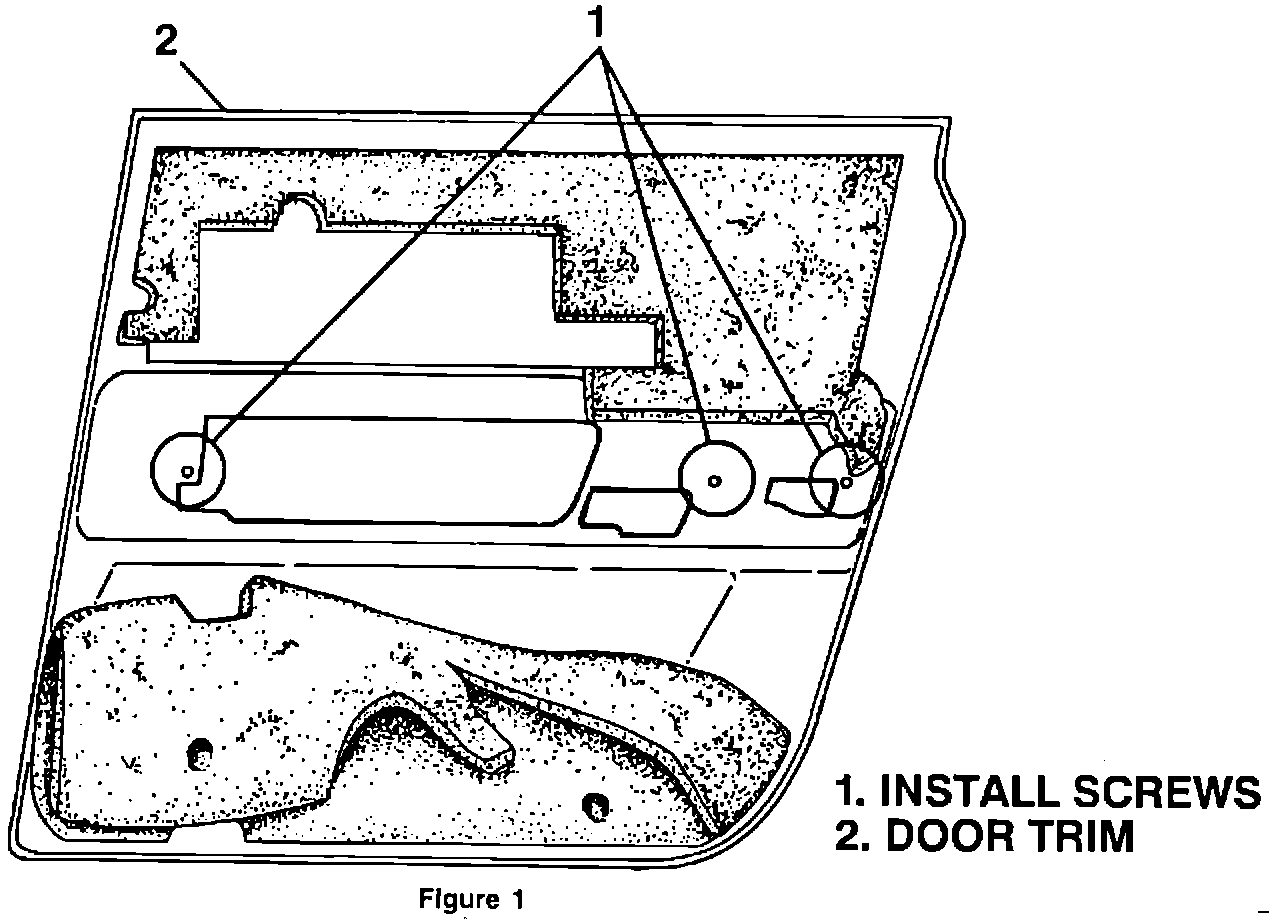

3. Install three (3) screws, P/N 15603694, through holes already in trim panel into bosses in the armrest. See Figure 1, Item 1.
4. Reinstall trim to door inner panel.
Parts are currently available from GMSPO.
WARRANTY INFORMATION:
For vehicles repaired under warranty, use:
Labor Operation: C3348 (Right Front Door)
C3358 (Left Front Door)
C3540 (Right Rear Door)
C3541 (Left Rear Door)
Use published labor operation time plus 0.1 Hr. to install screws.
