Air Temperature Sensor ( Ambient / Intake )
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

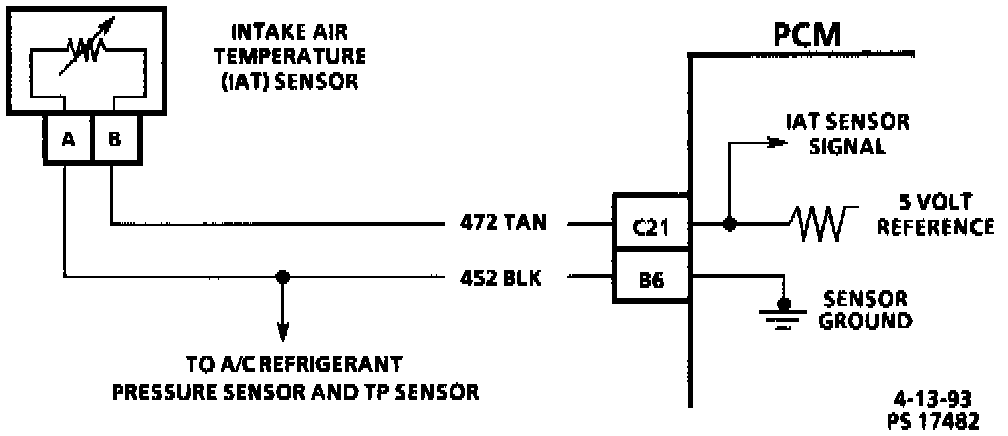

Intake Air Temperature (IAT) Sensor Circuit.:
