Home >> Buick >> 1994 >> Roadmaster V8-265 4.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Ctsy PWR Lock Fuse

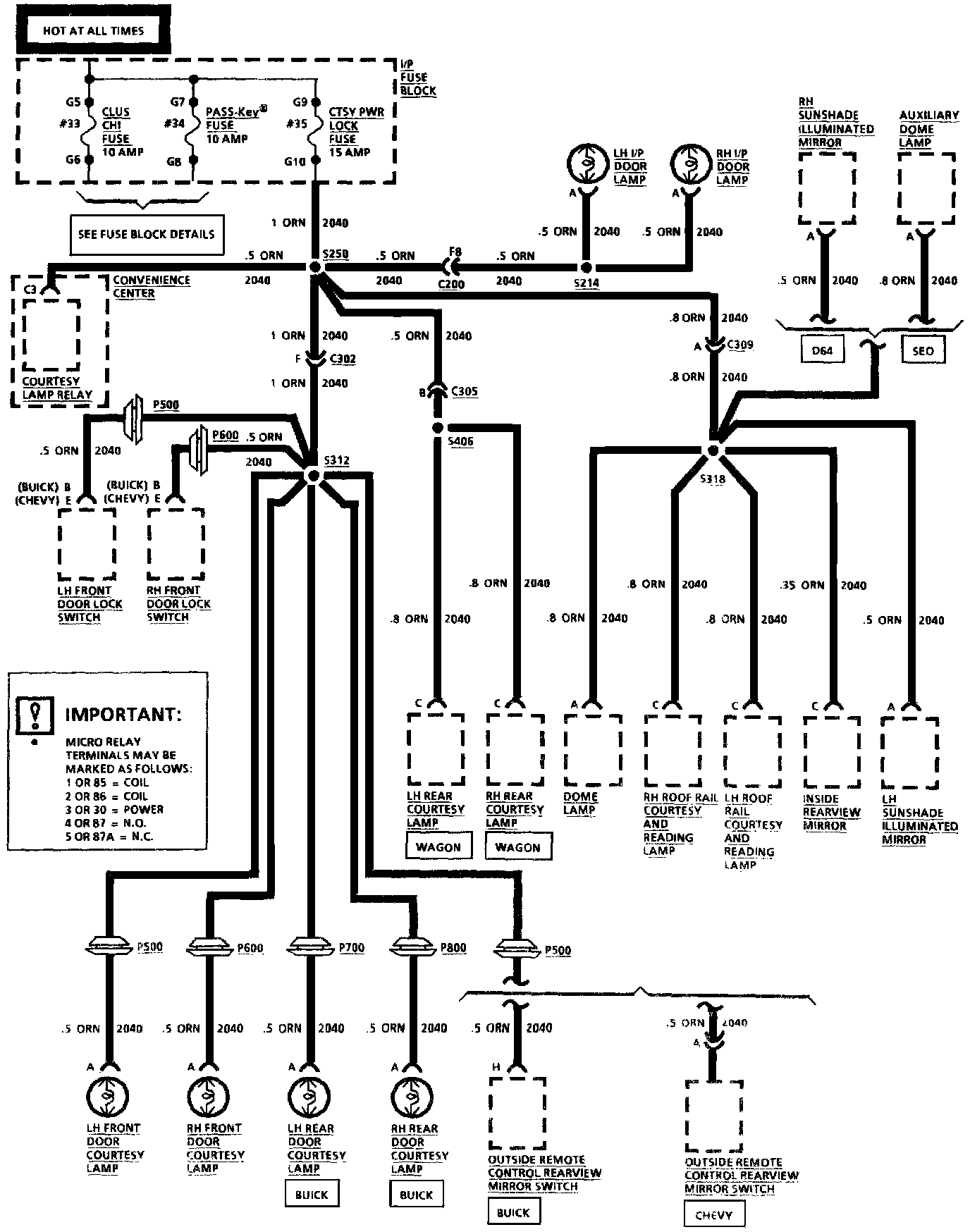

Ctsy PWR Lock Fuse

CTSY PWR Lock Fuse:
