Home >> Buick >> 1994 >> Roadmaster V8-265 4.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Ground Distribution >> G201

G201

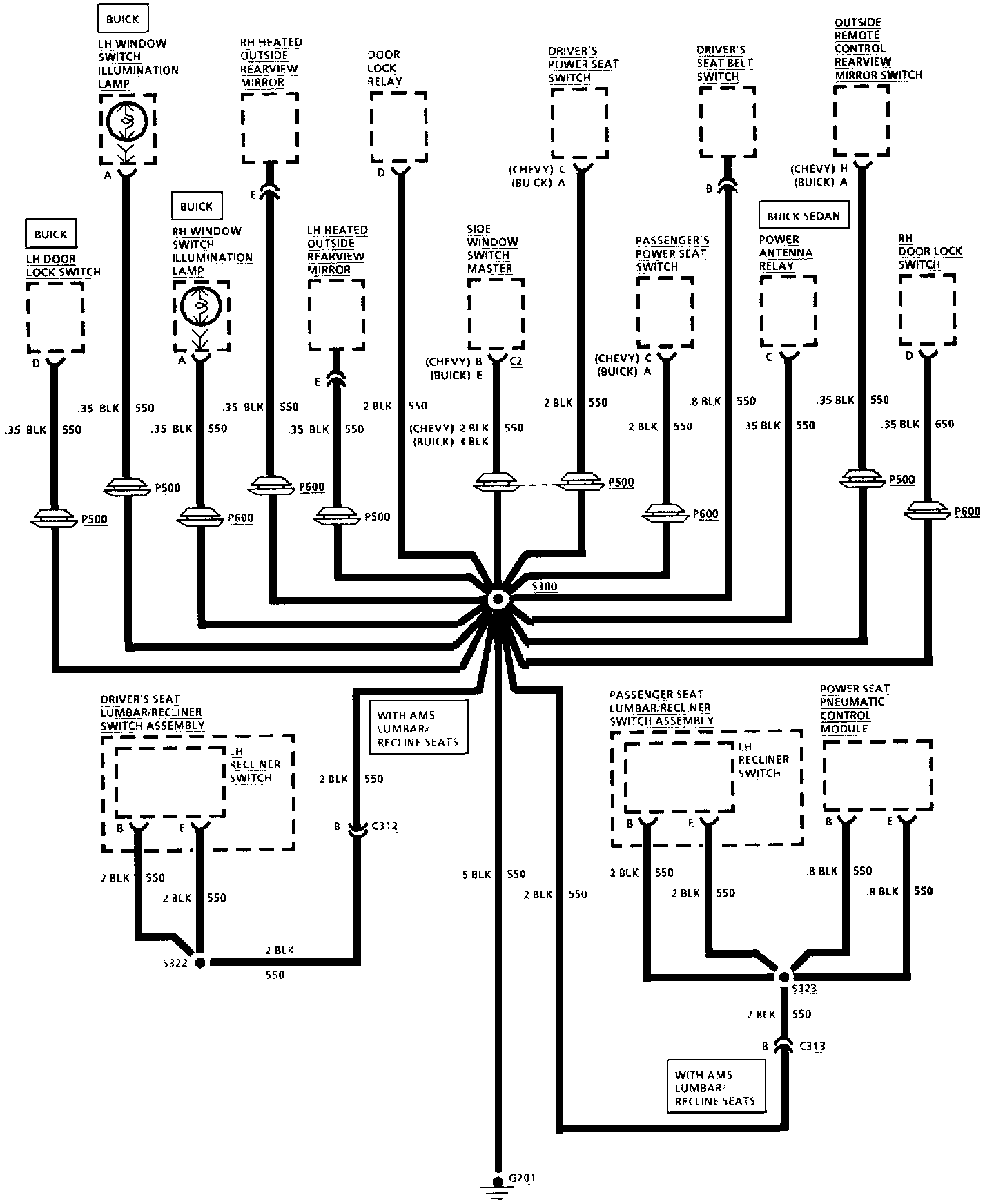

G201: Power Door Locks, Power Mirrors And Power Seats:
