Home >> Buick >> 1994 >> Roadmaster V8-265 4.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuse Block Diagrams >> Emi, Trans and Fuel Inj Fuses

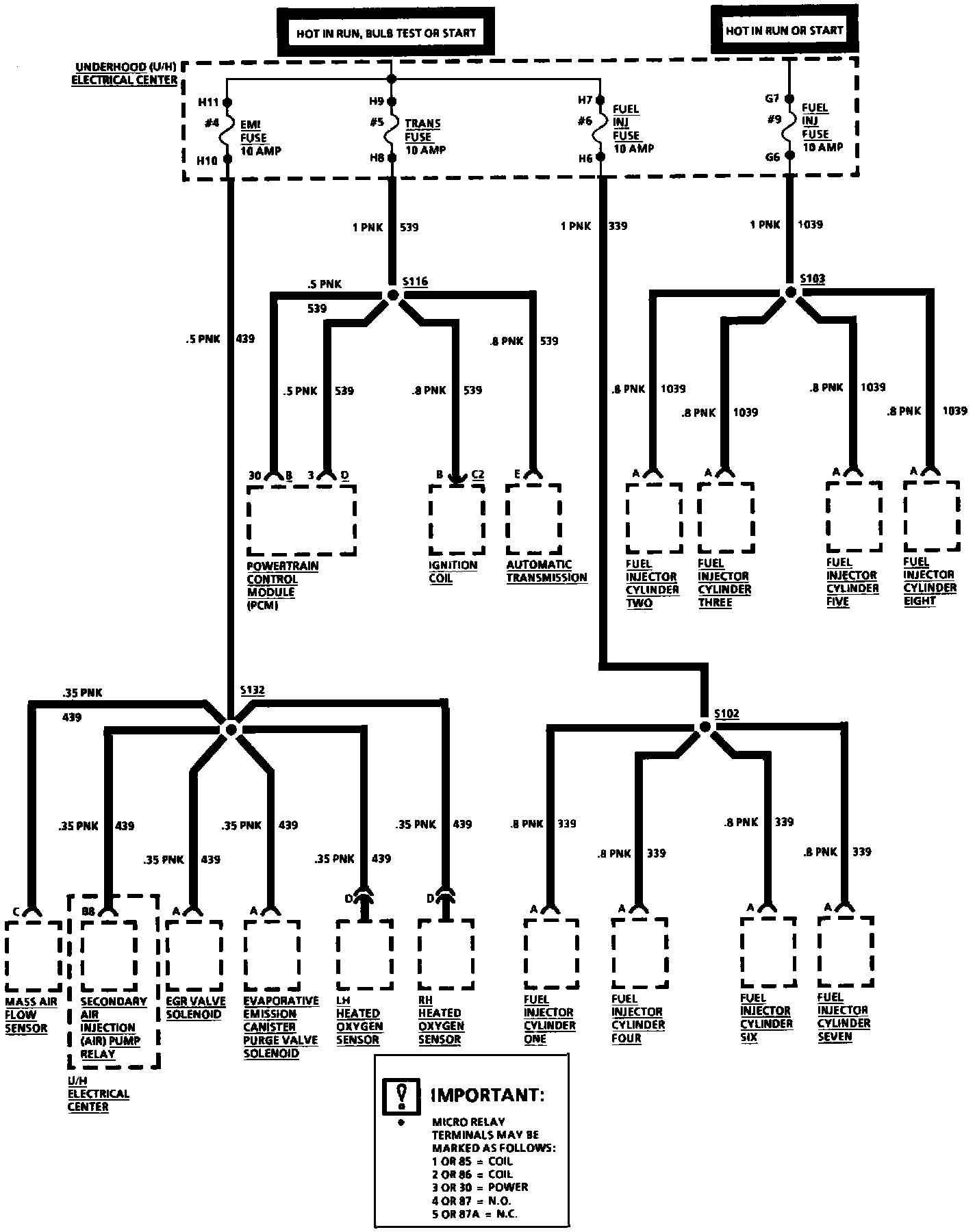

Emi, Trans and Fuel Inj Fuses

EMI, TRANS And Fuel INJ Fuses:
