Buick
>>
1994
>>
Roadmaster V8-265 4.3L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Connector Views
>>
Pinout Description
Pinout Description

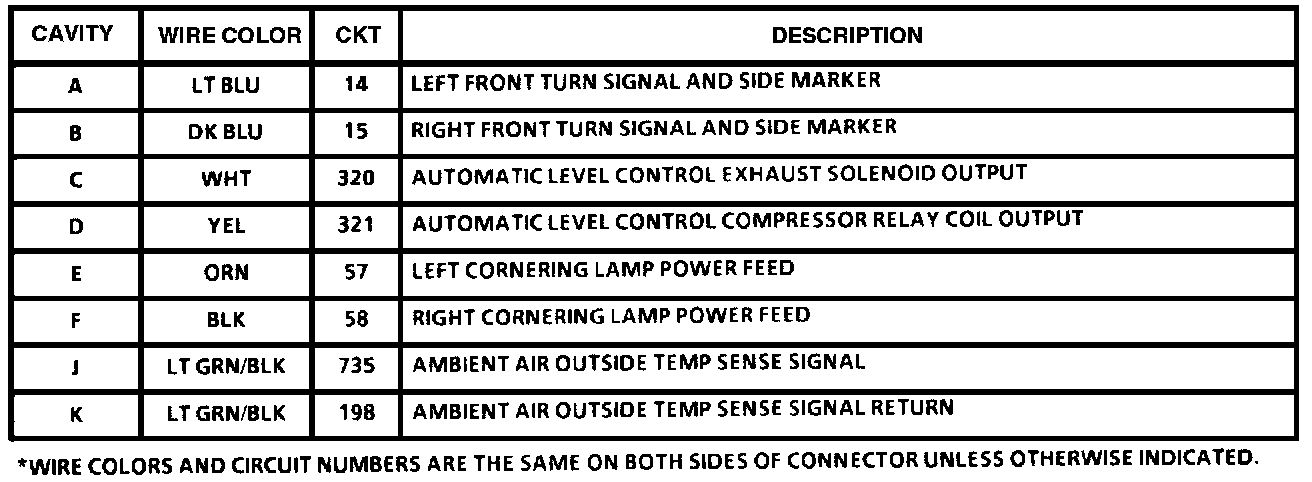

C100: Forward Lamp Harness To Body Harness:
