Home
>>
Buick
>>
1994
>>
Roadmaster V8-265 4.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Air Conditioning (C68)
>>
Air Delivery and Temperature Control
Air Delivery and Temperature Control

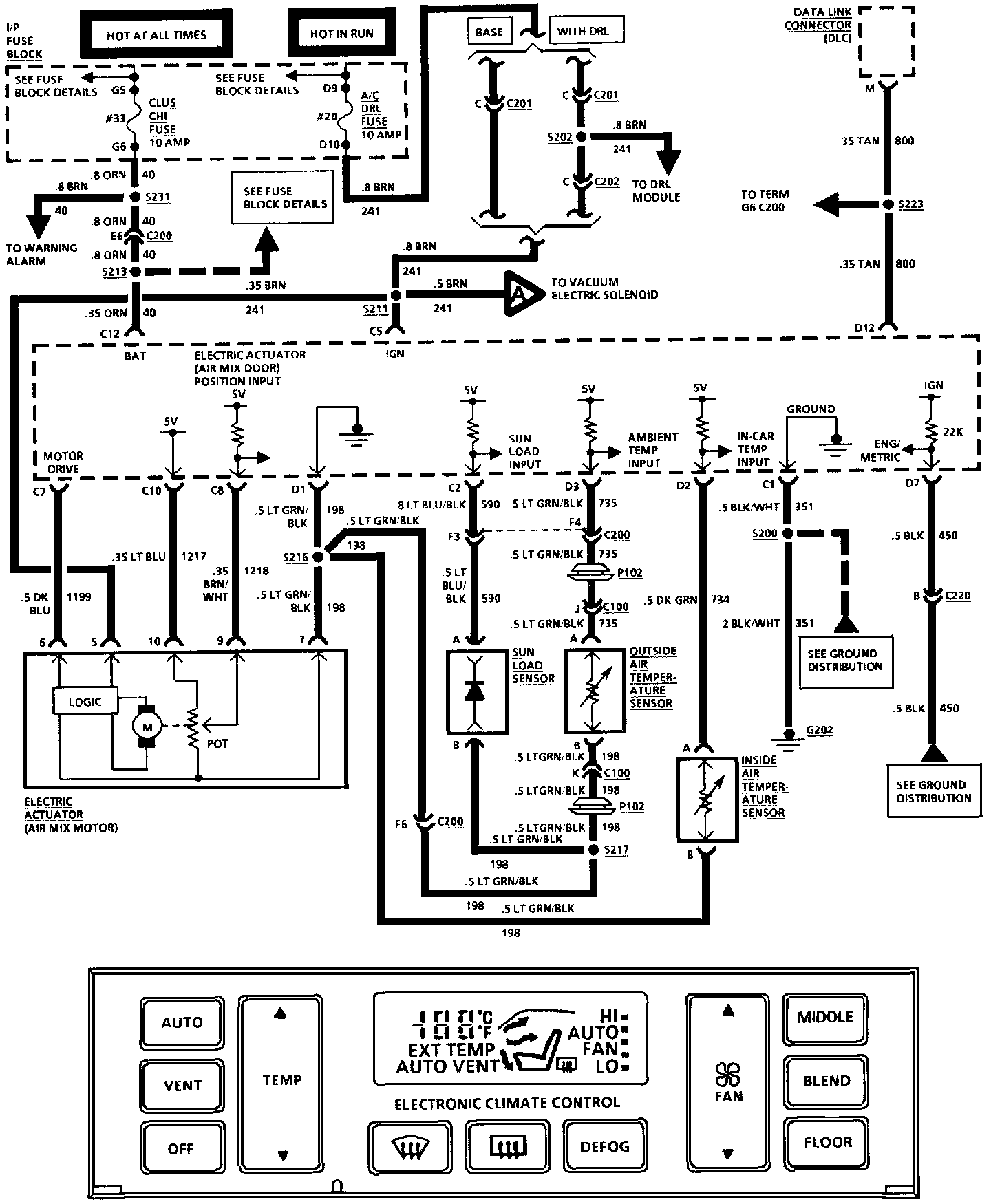

HVAC Air Delivery And Temperature Control: Auto A/C (Part 1 Of 2):

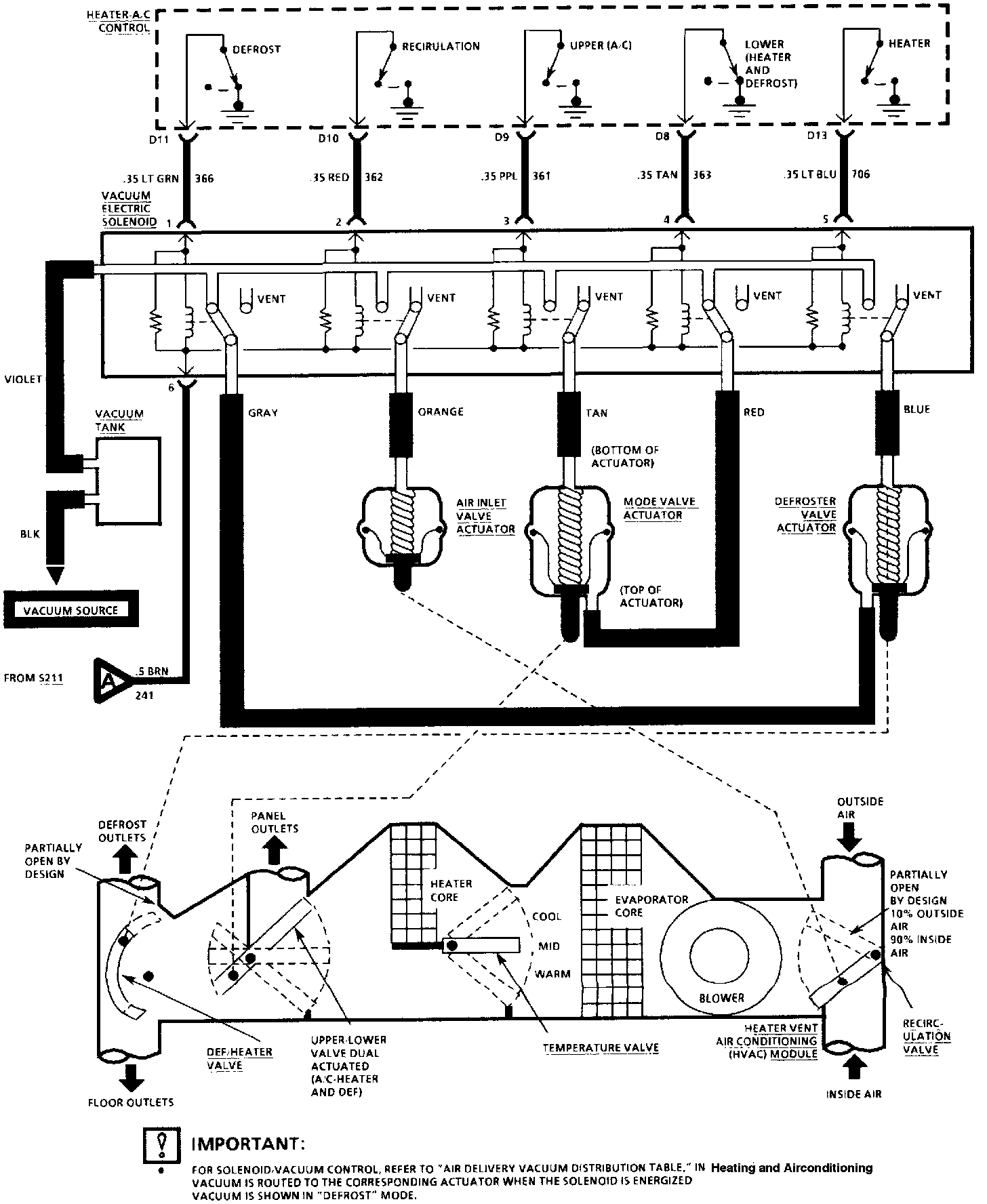

HVAC Air Delivery And Temperature Control: Auto A/C (Part 2 Of 2):
