Engine Mount: Service and Repair

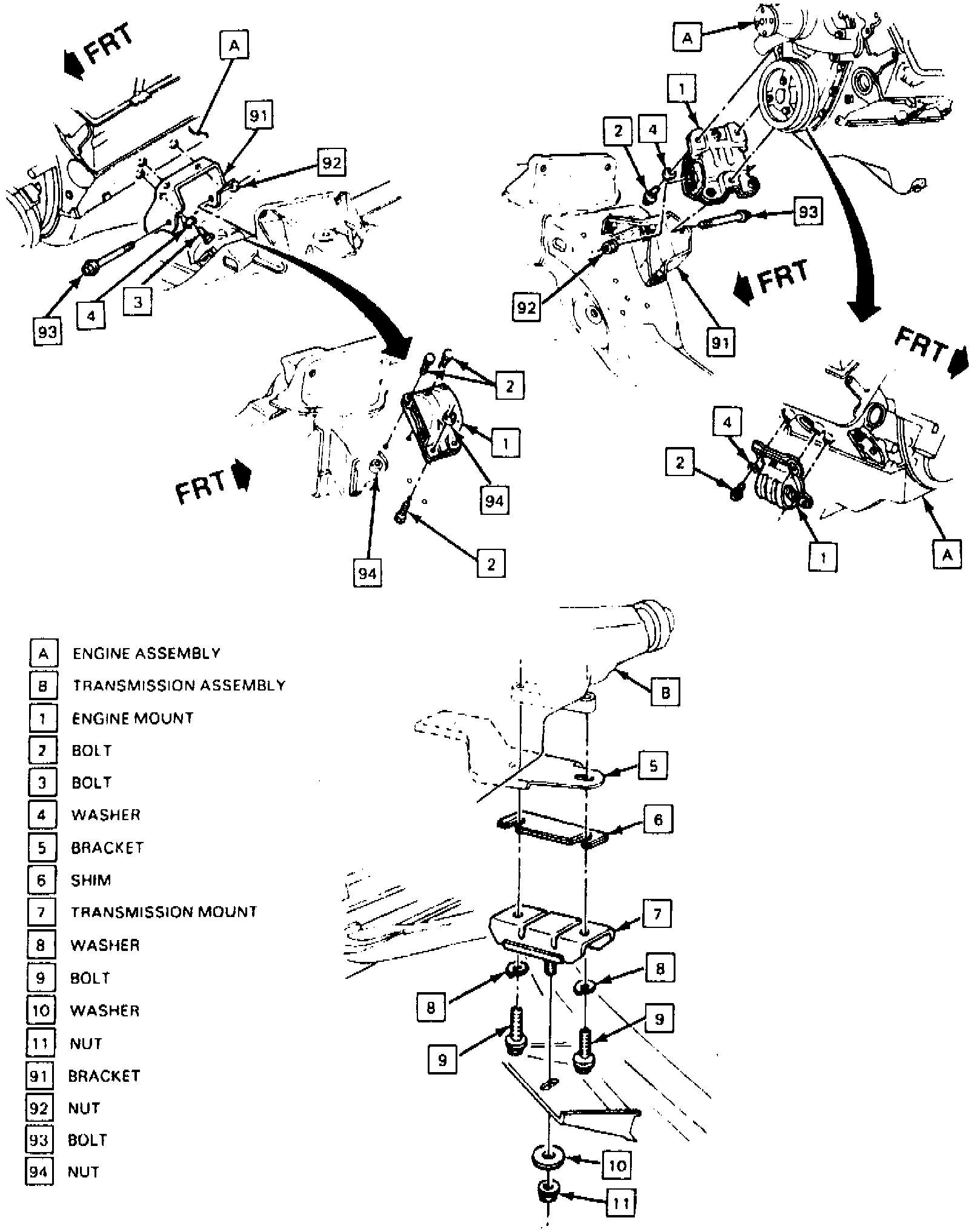

Fig. 1 Engine & Transmission Mounting:

1. Remove mount retaining bolt from below frame mounting bracket, Fig. 1.
2. Raise front of engine and remove mount to engine bolts and mount.
3. On all models, raise engine only enough to provide sufficient clearance for mount removal. Check for interference between rear of engine and cowl panel which could result in distributor damage.
4. Reverse procedure to install.
