Home >> Buick >> 1994 >> Roadmaster Estate Wagon V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Radio/Stereo

Radio/Stereo

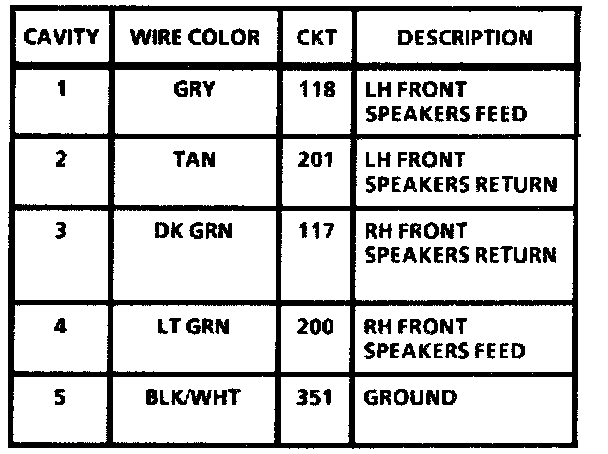

Radio (C1) (Part 1 Of 2):



Radio (C1) (Part 2 Of 2):



Radio (C2):

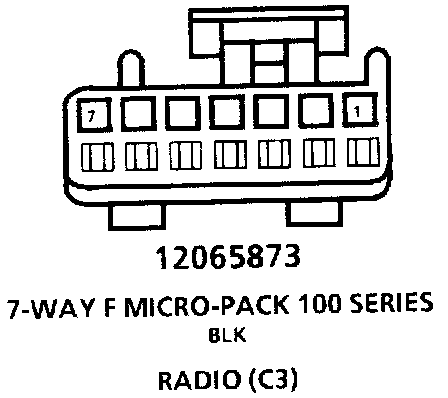

Radio (C3):

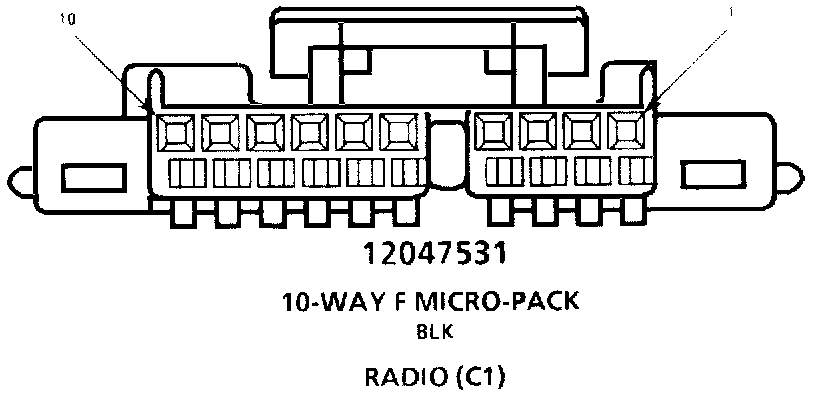

Radio (C1):

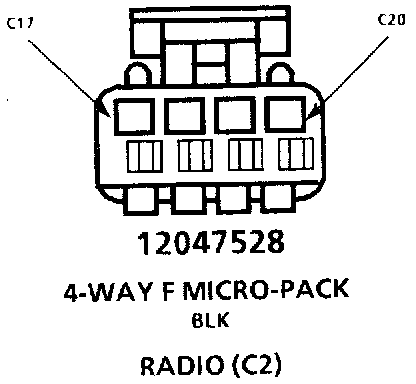

Radio (C2):



Radio (C3):
