Removal/Installation

Power Steering Pump:

REMOVE
1. Drain power steering fluid.
A. Place drain pan under reservoir assembly (89) and pump assembly.
B. Siphon fluid from reservoir assembly (89) to prevent excessive spillage.
2. Drain engine coolant.
3. Right side engine cooling fan blade and clutch assembly, and radiator outlet hose and pipe assembly, if equipped with mechanical fan.
4. Heater hose assembly at water pump assembly, generator and power steering pump bracket
5. Drive belt from power steering pump pulley.
6. Power steering gear inlet hose assembly from power steering pump assembly.
7. Power steering fluid reservoir hose assembly from power steering pump assembly.

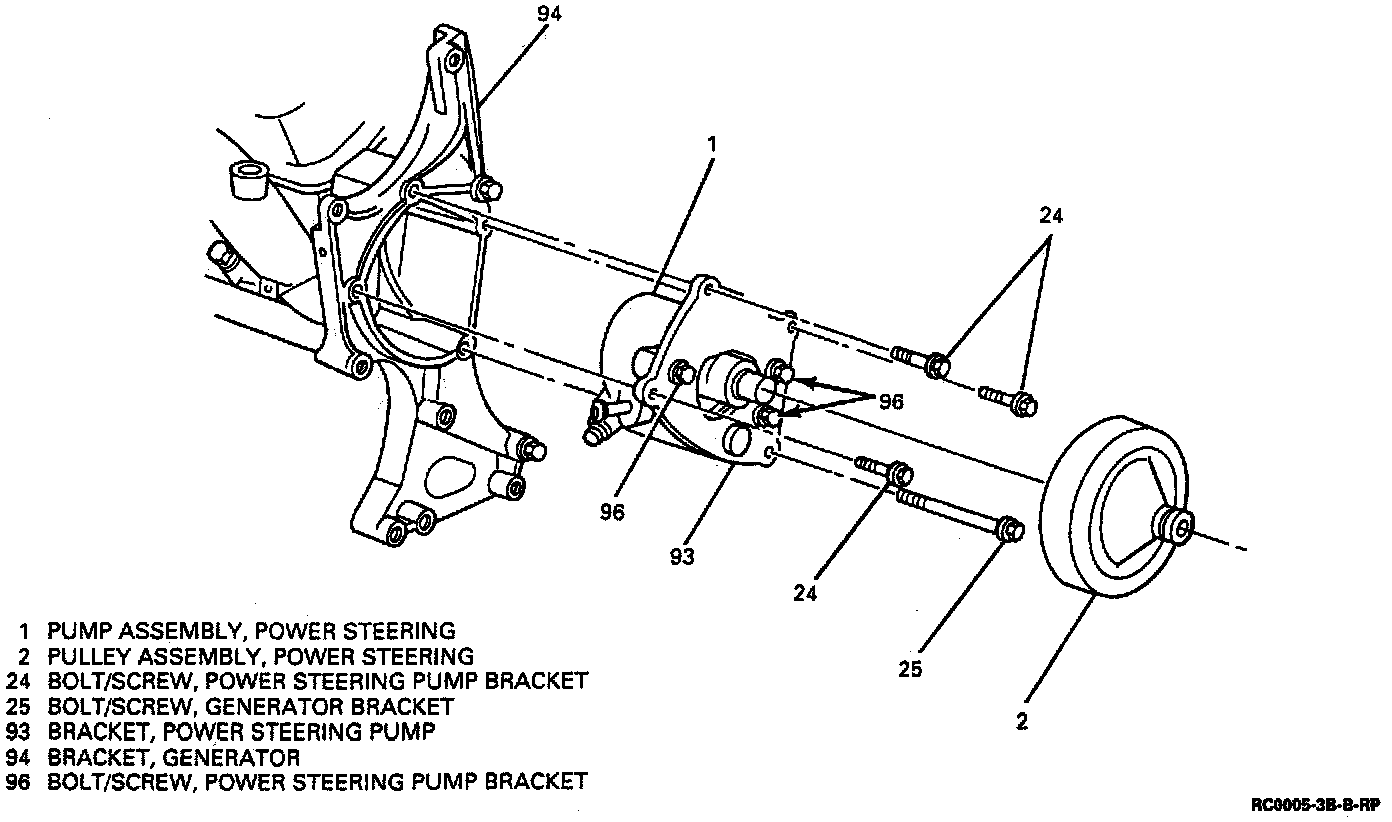

8. Power steering pump bracket bolts (24 and 25).
9. Power steering pump assembly.
10. Power steering pump pulley, if necessary.
11. Power steering pump bracket bolts/screws (96) and bracket (93), if necessary.

INSTALL
1. Power steering pump bracket (93) and bracket bolts/screws (96) , if removed.

Tighten: Power steering pump bracket bolts/screws (96) to 50 Nm (37 ft lb).

2. Power steering pump pulley, if removed.
3. Power steering pump assembly.
4. Bolts/screws (24 and 25).

Tighten: Bolts/screws (24) to 50 Nm (37 ft lb)
Bolts/screws (25) to 41 Nm (30 ft lb).

5. Power steering fluid reservoir hose assembly to power steering pump assembly.
6. Power steering gear inlet hose assembly to power steering pump assembly.

Tighten: Inlet hose assembly fitting to 28 Nm (21 ft lb).

7. Drive belt to power steering pump pulley.
8. Heater hose assembly at water pump assembly, generator and power steering pump bracket.
9. Right side engine cooling fan blade and clutch assembly, and radiator outlet hose and pipe assembly, if removed.

CAUTION: Do not start engine until after power steering system has been bled.

10. Refill power steering fluid reservoir assembly (2).
11. Refill engine cooling system.
12. Bleed power steering system.
13. Bleed engine cooling system.
