Coupe

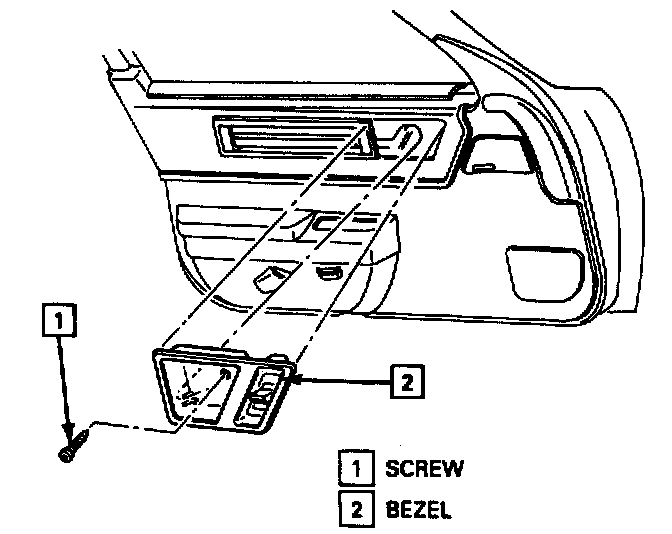

Inside Handle Bezel and Door Lock Knob:

The door lock knob is located withing the inside handle bezel on the coupe.

Remove or Disconnect

1. Screw.
2. Handle bezel.

Install or Connect

1. Handle bezel.
2. Screw.

Tighten
^ Screw to 1.3 N.m (12 lb in).
