Throttle Valve Cable/Linkage: Adjustments

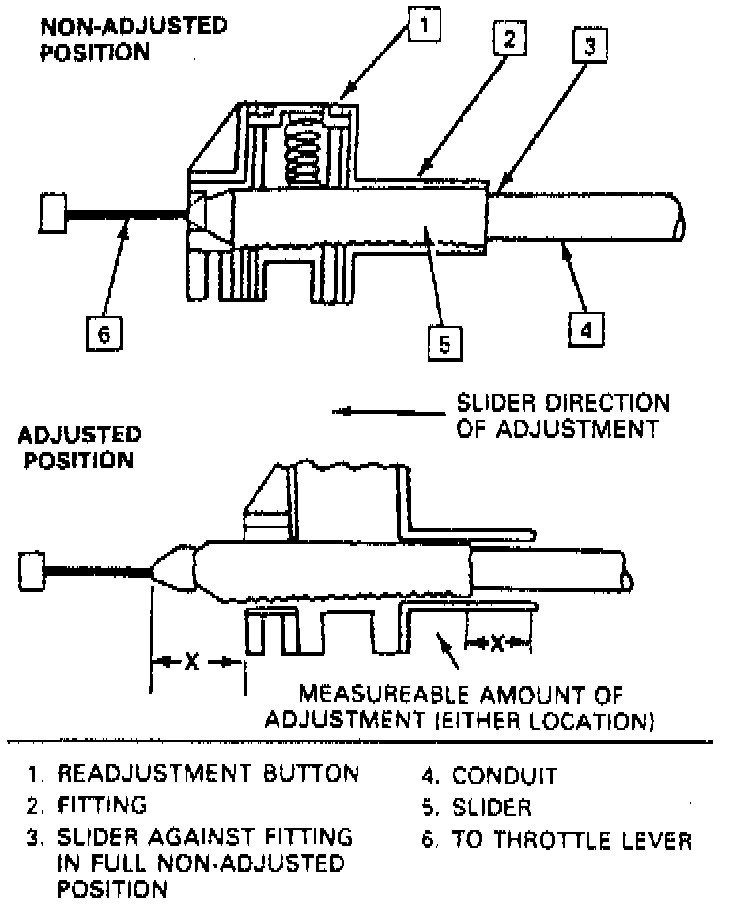

Fig.7 TV Cable Adjustment.:

ADJUSTMENT
1. Depress and hold adjustment button, Fig. 7.
2. Pull cable conduit out until slider hits against adjustment.
3. Release button.
4. Repeat adjustment.
