Home >> Buick >> 1994 >> Regal V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Fog/Driving Lamp Relay >> Locations

Fog/Driving Lamp Relay: Locations


LH Side Of Engine Compartment:

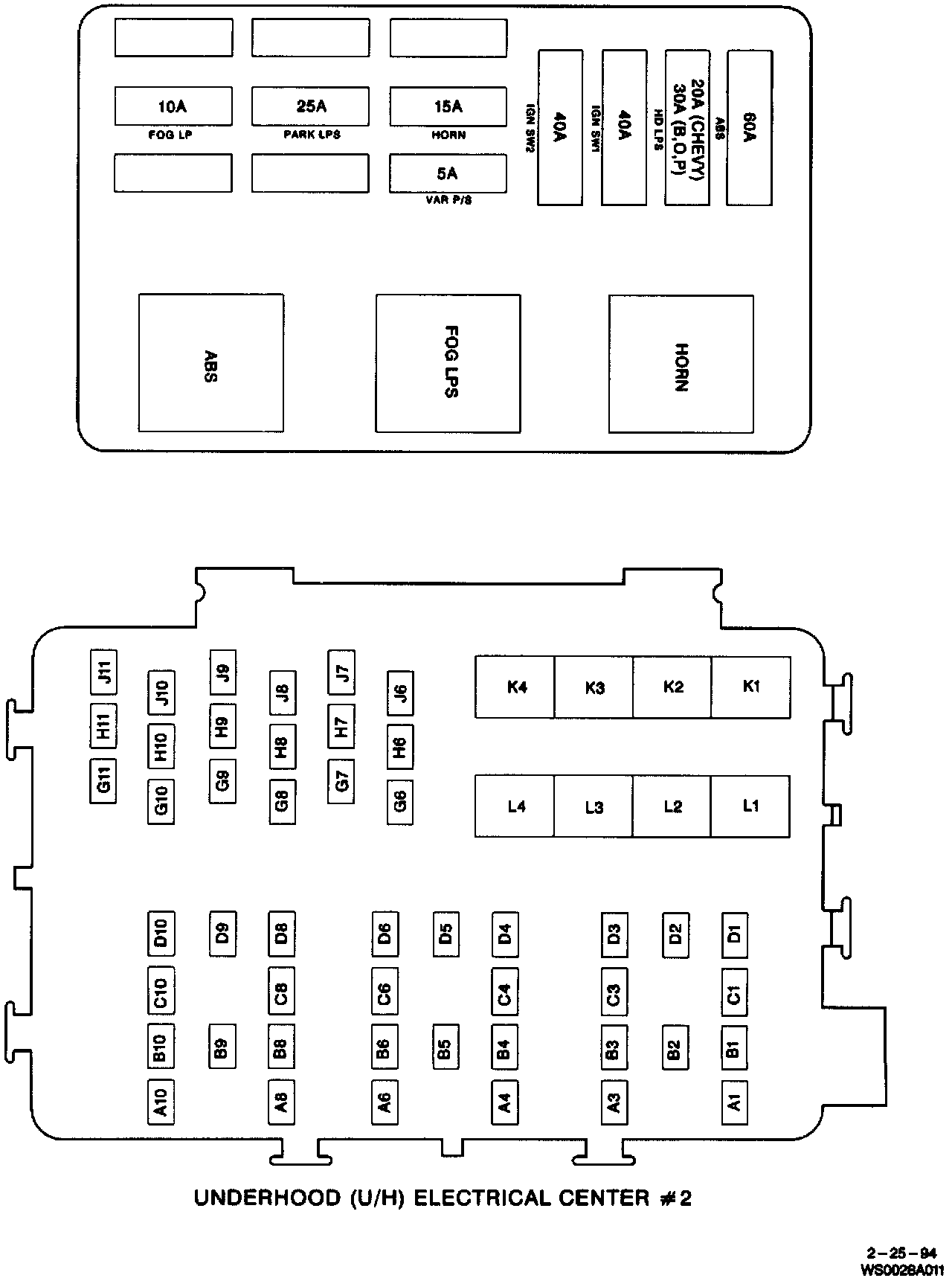

Underhood Electrical Center #2:







The fog light relay is located in the underhood (U/H) electrical center # 2.
