Automatic Transmission/Transaxle Controls

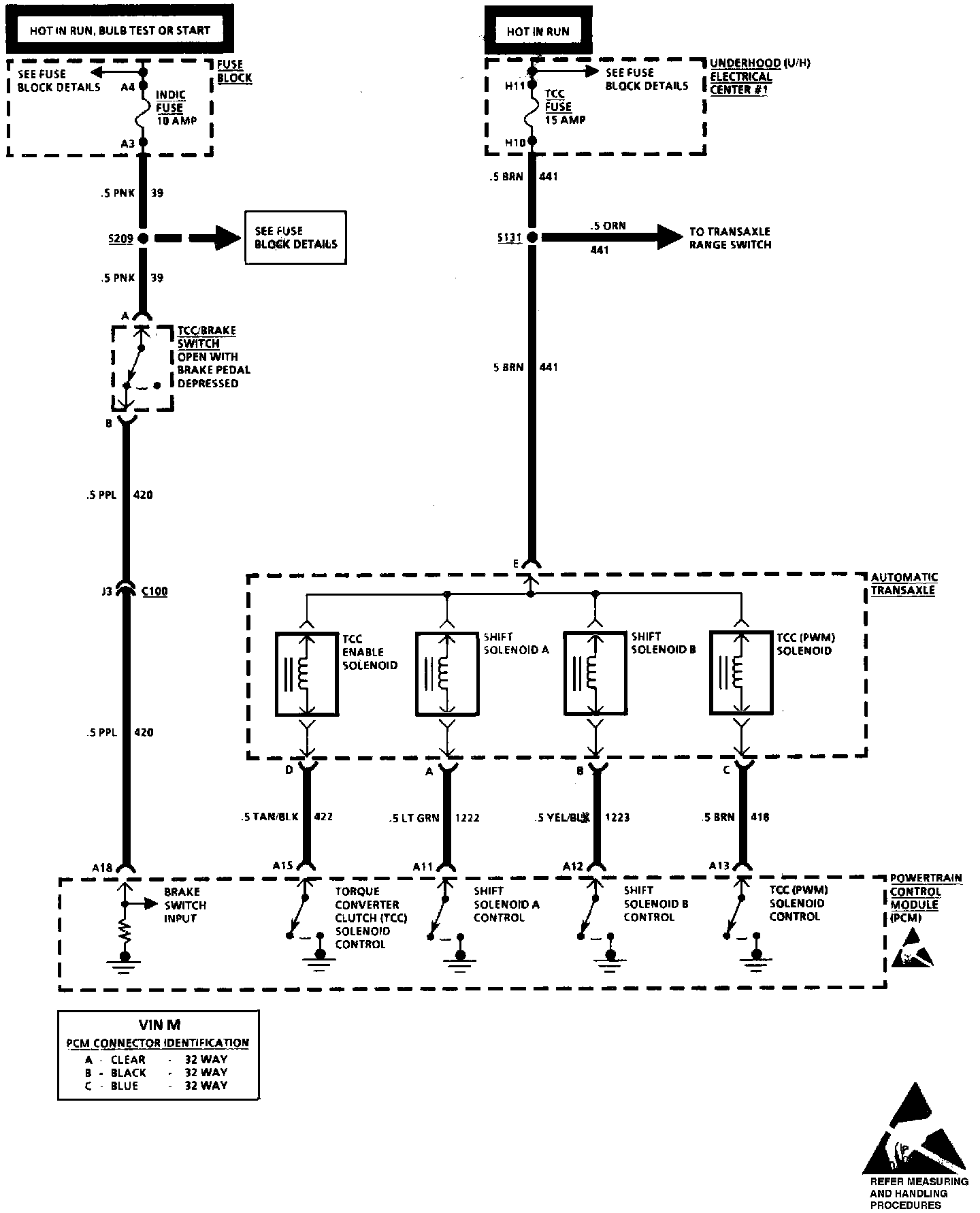

4 Speed Automatic Transaxle (Part 1 Of 2):

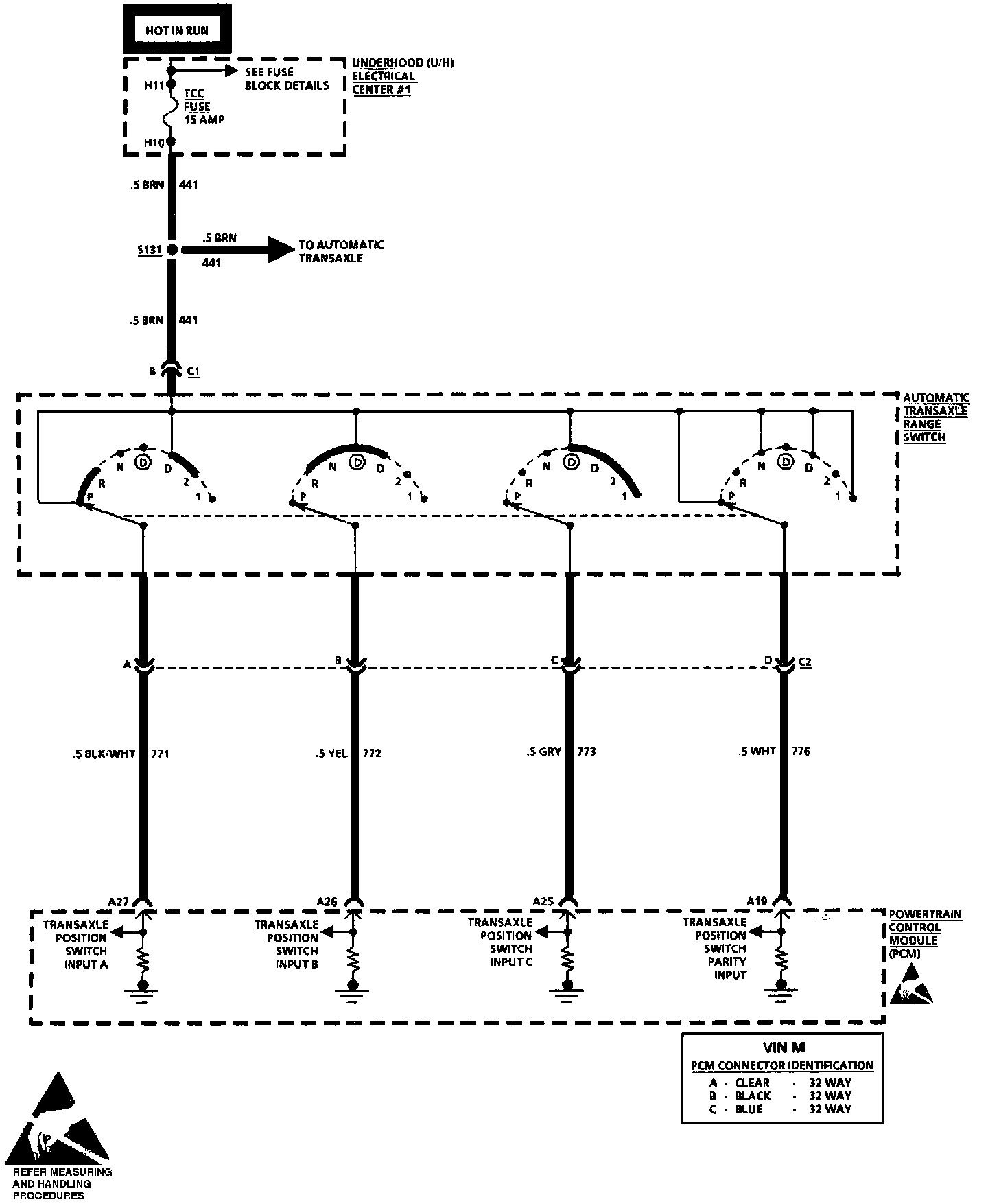

4 Speed Automatic Transaxle (Part 2 Of 2):



Automatic Transaxle (Part 1 Of 2):



Automatic Transaxle (Part 2 Of 2):
